1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog

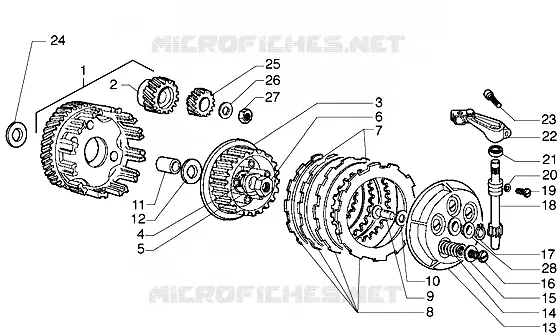

Clutch unit
6
Parts Diagram
Parts Catalog
Starting shaft
by
Gear selector
Clutch unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Clutch drum
ODN00H03603521
Not Available
2
Pinion
ODN00H02601381
Not Available
3
Drum
ODN00H02600111
Not Available
4
Stop washer
ODN00H05000281
Not Available
5
Plate
ODN00006826230
Not Available
6
Nut
ODN00000326260
Not Available
7
Disc
ODN00H02600151
Not Available
8
Driving clutch disc
ODN00H02601161
Not Available
9
Rack
ODN00H02600271
Not Available
10
Radial bearing
ODN00H02600551
Not Available
11
Ring nut
ODN00H02601011
Not Available
12
Washer
ODN00D02600552
Not Available
13
Clutch cover
ODN00H02600181
Not Available
14
Adjusting spring
ODN00H02600211
Not Available
15
Washer
ODN00D02600631
Not Available
16
screw
ODN00012053500
Not Available
17
Snap ring
ODN00000047110
Not Available
18
Pin
ODN00H02610311
Not Available
19
Sec. screw
ODN00H02600342
Not Available
20
Washer
ODN00H03800441
Not Available
21
Selector shaft
ODN00002027280
Not Available
22
Lever
ODN00H02600322
Not Available
23
screw
ODN00052062011
Not Available
24
Washer
ODN00002026020
Not Available
25
Pinion
ODN00H03800181
Not Available
26
Fixing washer
ODN00H02600651
Not Available
27
Nut
ODN00H02600401
Not Available
28
Stop washer
ODN00H05000281
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
