1
Engine displacement
50
2
Model
ZULU
3
Year
2001
4
Trim
Zulu 50
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Gear selector
by
Oil pump
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Spring clamp
ODN00F03710131
Not Available
2
Pump cover
ODN00H03704011
Not Available
3
Ring nut
ODN00H03700211
Not Available
4
Oil pump shaft
ODN00H03700101
Not Available
5
Transmission key
ODN00053030000
Not Available
6
Stop washer
ODN00H05000281
Not Available
7
Snap ring
ODN00000047110
Not Available
8
Pinion
ODN00H03800381
Not Available
9
Joint
ODN00H03701041
Not Available
10
Oil pump
ODN00H03701021
Not Available
11
Oil outlet pipe
ODN00H00400781
Not Available
12
Hose
ODN00H03700351
Not Available
13
Oil outlet pipe
ODN00H03701121
Not Available
14
screw
ODN00002051551
Not Available
15
screw
ODN00000004510
Not Available
16
screw
ODN00002054551
Not Available
17
Washer
ODN00000033050
Not Available
18
Plain washer d5
ODN00000031050
Not Available
19
Maintenance
ODN00H03700311
Not Available
20
Fairlead
ODN00H03700141
Not Available

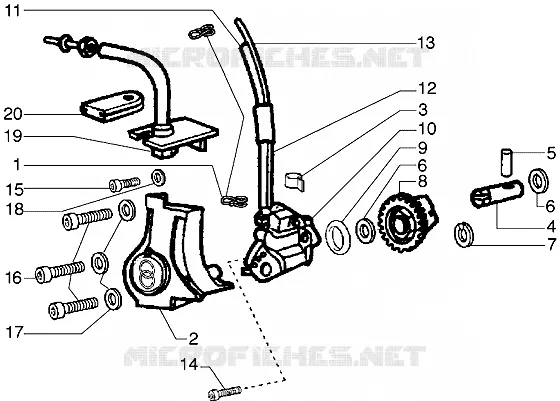

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
