1
Engine displacement
125
2
Model
RUNNER
3
Year
2003
4
Trim
Runner VX
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6

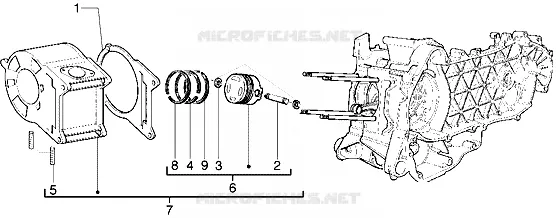

Parts Diagram
Parts Catalog
Electrical devices
by
Electrical devices
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
482335
$4,92 Unit Price incl. VAT
3
Snap ring
963486
$0,05 Unit Price incl. VAT
4
Oil scraper ring d.57x1
434415
Not Available
4
Scraper ring
487999
Not Available
4
Scraper ring
487995
Not Available
4
Scraper ring
488003
$7,61 Unit Price incl. VAT
5
Stud bolt M6
239397
$0,24 Unit Price incl. VAT
6
Piston-wrist pin assy.
8284665002
Not Available
6
Piston-wrist pin assy.
8284665004
Not Available
6
Piston-wrist pin assy.
828464
Not Available
6
Piston-wrist pin assy.
8284665003
Not Available
6
Piston-wrist pin assy.
828465
Not Available
6
Piston-wrist pin assy.
8284665001
Not Available
6
Piston-wrist pin assy.
828463
Not Available
7
Cylinder-piston-wrist pin, ring, assy.
828462
Not Available
8
Gasket ring
487994
Not Available
8
Gasket ring
487998
Not Available
8
Gasket ring
488002
Not Available
8
Compression ring d.57x1
485619
Not Available
9
Oil scraper ring d.57x2,5
485934
Not Available
9
PANEL
4883045
Not Available
9
Oil scraper ring
825029
$14,34 Unit Price incl. VAT
9
Oil scraper ring
487996
$14,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
