1
Engine displacement
125
2
Model
RUNNER
3
Year
2003
4
Trim
Runner VX
5
Parts Catalog

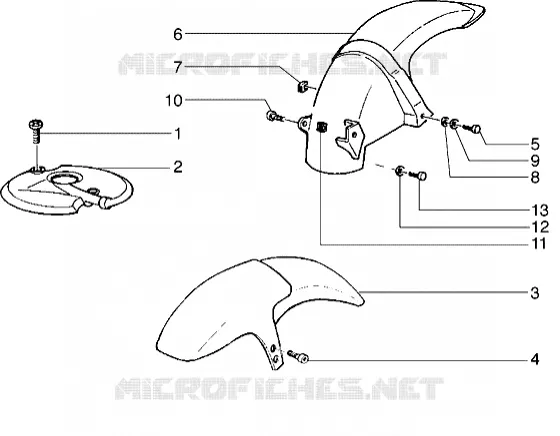

Front and rear mudguard
6
Parts Diagram
Parts Catalog
Petrol cap-steering wheel lock
by
Saddle
Front and rear mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Hex screw M6x18
031089
$2,99 Unit Price incl. VAT
2
Mudguard
597201
Not Available
3
Front mudguard
59702250B5
Not Available
3
Front mudguard
5970225
Not Available
3
Front mudguard
59702250G4
Not Available
3
Front mudguard
59702250R4
Not Available
4
Screw m16x16
015558
$3,65 Unit Price incl. VAT
5
screw
015804
$3,65 Unit Price incl. VAT
6
Rear mudguard
577703
Not Available
7
Spring plate M6
254485
$0,34 Unit Price incl. VAT
8
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
9
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
10
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
11
Spring plate
184142
Not Available
12
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
13
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
