by

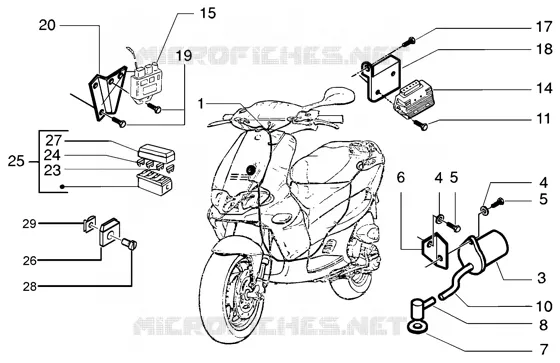

Electrical device
1
3
4
4
5
5
6
7
8
10
11
14
15
17
18
19
20
23
24
25
26
27
28
29
1
Cable harness
584643
Not Available
1
Cable harness
582111
Not Available
2
Insulating cap
231571
$1,11 Unit Price incl. VAT
3
HT coil
58028R
Not Available
3
HT coil
82597R
$9,99 Unit Price incl. VAT
4
Washer
012528
$0,34 Unit Price incl. VAT
5
screw M5x21
015856
$0,16 Unit Price incl. VAT
6
Square
582099
$1,33 Unit Price incl. VAT
7
Spark plug prot.collar
828210
Not Available
8
Screened cap
293845
$6,14 Unit Price incl. VAT
10
H.V. cable
080341
$5,89 Unit Price incl. VAT
11
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
14
Voltage regulator
82501R
Not Available
15
Electronic control unit
58054R
$330,71 Unit Price incl. VAT
15
Electronic control unit
830480
Not Available
17
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
18
Square
582100
Not Available
19
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
20
Square
582108
Not Available
23
Fuse 15A
290860
$5,73 Unit Price incl. VAT
24
Reed fuse 5a
293256
$0,42 Unit Price incl. VAT
25
Fuse holder
581190
$7,23 Unit Price incl. VAT
26
Fuse holder
580653
$35,69 Unit Price incl. VAT
27
Plug
581191
$5,38 Unit Price incl. VAT
28
Self-tap screw
576189
$0,05 Unit Price incl. VAT
29
Spring plate
185802
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
