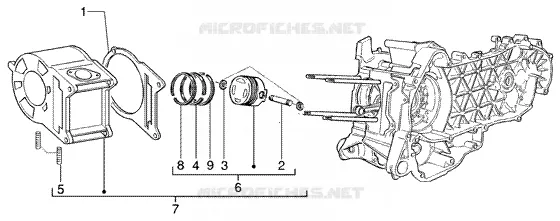

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
829529
$8,12 Unit Price incl. VAT
3
Snap ring
963486
$0,05 Unit Price incl. VAT
4
Scraper ring 72x1
484908
$24,09 Unit Price incl. VAT
5
Stud bolt M6
239397
$0,24 Unit Price incl. VAT
6
Piston-wrist pin assy.
8300530002
Not Available
6
Piston-wrist pin assy.
8300530001
$225,45 Unit Price incl. VAT
7
Cylinder, assy.
830052
Not Available
8
Ring 72x1.5
830486
$34,62 Unit Price incl. VAT
8
Piston ring
830485
Not Available
9
Scraper ring 72x2,5
486363
$25,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
