1
Engine displacement
200
2
Model
RUNNER
3
Year
2003
4
Trim
Runner 200 VXR 4T
5
Parts Catalog
Driving half pulley
6
Parts Diagram
Parts Catalog
Rear wheel shaft
by
Electric starter
Driving half pulley
1
2
3
4
5
6
7
10
11
12
1
Roller housing
827699
Not Available
1
Roller housing
832842
Not Available
2
CONTRASTO RULLI
485710
$12,02 Unit Price incl. VAT
3
Sliding block
434855
Not Available
4
KIT 6 RULLI k1
4857135
$11,45 Unit Price incl. VAT
4
roller complete
832698
Not Available
5
ANELLO DI TENUTA (O-RING)
832508
$3,65 Unit Price incl. VAT
6
V-belt
832623
Not Available
6
CINGHIA TRAPEZOIDALE
840908
$162,00 Unit Price incl. VAT
7
SEMIPULEGGIA MOTRICE
834774
$18,36 Unit Price incl. VAT
7
SEMIPULEGGIA MOTRICE
832720
$63,45 Unit Price incl. VAT
10
Flanged nut M12
436783
Not Available
11
DISTANZIALE
483889
$19,92 Unit Price incl. VAT
12
Starting ring gear with limiting device
827656
$110,43 Unit Price incl. VAT
12
Torque limiter
840815
Not Available

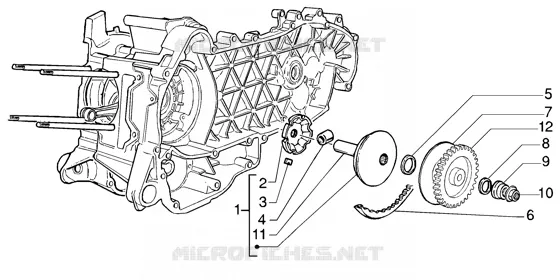

Find the detailed Driving half pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
