1
Engine displacement
200
2
Model
RUNNER
3
Year
2003
4
Trim
Runner 200 VXR 4T
5
Parts Catalog
Flywheel magneto - Secondary air box
6
Parts Diagram
Parts Catalog
Crankcase cooling
by
Belt cooling tube
Flywheel magneto - Secondary air box
1
2
3
4
5
6
7
8
11
12
13
14
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33
35
36
38
38
40
41
42
43
45
1
Screw m5x22
015901
$2,25 Unit Price incl. VAT
2
RONDELLA ELASTICA CURVATA (D10 F5,3)
006965
$0,08 Unit Price incl. VAT
3
Flanged nut M12
436783
Not Available
4
ROTORE COMPLETO
584689
$29,70 Unit Price incl. VAT
4
Rotor
831299
Not Available
4
Rotor, assy.
828090
Not Available
5
Stator
833697
Not Available
5
Stator
828135
Not Available
6
LINGUETTA A DISCO
000267
$1,19 Unit Price incl. VAT
7
Cdi magneto assy
82653R
Not Available
7
Cdi magneto assy
58060R
Not Available
8
Air deflector
8299615
Not Available
8
Flywheel cover
8403215
Not Available
8
Flywheel cover
8447485
Not Available
8
Flywheel cover
8413625
Not Available
11
TAPPO CONTR.FASATURA
825529
$5,38 Unit Price incl. VAT
12
Gasket ring
485084
Not Available
12
Gasket ring
842595
Not Available
13
Ceramic insert
486216
Not Available
14
Ball bearing
827149
Not Available
17
Drive coupling
487459
$7,23 Unit Price incl. VAT
18
COPERCHIO POMPA "H2O"
486237
$20,60 Unit Price incl. VAT
19
O.R. COPERCHIO POMPA
485080
$0,72 Unit Price incl. VAT
20
VITE TCCIC M5X22 (5.8)
828662
$0,25 Unit Price incl. VAT
21
screw
828569
Not Available
22
Oil delivery pipe
840022
Not Available
22
Oil delivery pipe
827207
Not Available
23
FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)
CM001908
$3,65 Unit Price incl. VAT
24
Water pump shaft assy.
827714
Not Available
25
VITE A TESTA CIL.INC.
828493
$2,95 Unit Price incl. VAT
26
RONDELLA ELASTICA CURVATA (D10 F5,3)
006965
$0,08 Unit Price incl. VAT
27
GRANO DI RIFERIMENTO (Ø7,5, H=12)
277916
$0,34 Unit Price incl. VAT
28
Soundproofing material
834153
Not Available
29
Cover
834119
$5,38 Unit Price incl. VAT
30
VITE
296458
$2,25 Unit Price incl. VAT
32
RONDELLA PIANA 12x5,2x1
006078
$0,08 Unit Price incl. VAT
33
TUBO VALVOLA SAS-RACCORDO
831259
$2,05 Unit Price incl. VAT
35
GUARNIZIONE RACCORDO
832059
$4,89 Unit Price incl. VAT
36
TUBO VALVOLA S.A.S.
831260
$31,21 Unit Price incl. VAT
38
GUARNIZIONE
831258
$4,82 Unit Price incl. VAT
40
COPERCHIO SCATOLA S.A.S.
831255
$7,69 Unit Price incl. VAT
41
ELEMENTO FILTRANTE S.A.S.
831257
$3,78 Unit Price incl. VAT
42
GUARNIZ.IN GOMMA S.A.S
831256
$4,82 Unit Price incl. VAT
43
SAS valve
82731R
$89,76 Unit Price incl. VAT
45
TUBO DEPRESSIONE
843400
$5,54 Unit Price incl. VAT

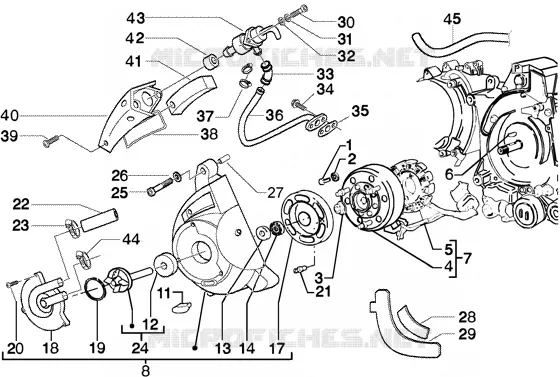

Find the detailed Flywheel magneto - Secondary air box GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
