1
Engine displacement
200
2
Model
RUNNER
3
Year
2002
4
Trim
Runner 200 VXR 4T
5
Parts Catalog

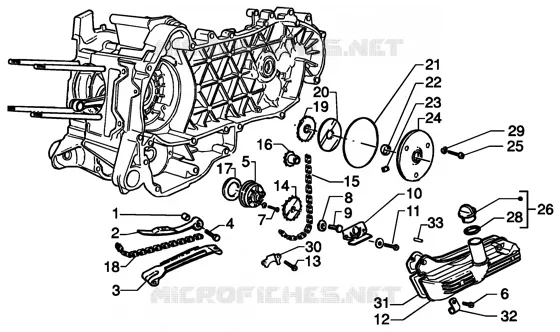

Oil pump-oil pan
6
Parts Diagram
Parts Catalog
Driven pulley
by
Rear wheel shaft
Oil pump-oil pan
1
2
3
4
5
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
32
33
1
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
2
Chain tensioner rod
828303
Not Available
3
Chain tensioner sliding block
828308
$1,34 Unit Price incl. VAT
4
Screw w/ flange M6x25
414837
Not Available
5
Oil pump assembly
844352
Not Available
5
Oil pump
487343
Not Available
6
Screw w/ flange M6x25
414837
Not Available
7
Screw w/ flange
433477
$0,19 Unit Price incl. VAT
8
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
9
Screw w/ flange M6x14
833722
Not Available
9
Screw w/ flange
436788
Not Available
10
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
11
Screw M5x10
018575
$2,95 Unit Price incl. VAT
12
Motor oil cup
843761
$13,95 Unit Price incl. VAT
12
Pan oil
829523
$16,58 Unit Price incl. VAT
13
Screw w/ flange
484123
$0,16 Unit Price incl. VAT
14
Oil pump gear
287913
$6,47 Unit Price incl. VAT
15
Oil pump chain
82649R
$13,37 Unit Price incl. VAT
16
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
16
Oil pump control pinion
483784
Not Available
17
Carter-oil pump gasket
486082
$0,29 Unit Price incl. VAT
18
Camshaft chain
82644R
Not Available
19
Timing pinion
825595
$22,39 Unit Price incl. VAT
20
Oil seal washer
483918
$0,53 Unit Price incl. VAT
21
Gasket ring
825620
$8,21 Unit Price incl. VAT
22
Gasket ring
82538R
$8,01 Unit Price incl. VAT
23
Oil pump chain drift
434345
$2,77 Unit Price incl. VAT
24
Cover
828875
$11,51 Unit Price incl. VAT
25
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
26
Oil filler plug
846819
Not Available
26
Oil plug assembly
843364
$1,39 Unit Price incl. VAT
26
Oil plug assembly
827761
Not Available
28
O-ring
479986
Not Available
29
Plain washer
487937
$0,09 Unit Price incl. VAT
30
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
31
Sump gasket
830128
$2,77 Unit Price incl. VAT
32
Hose clamp
564629
$2,50 Unit Price incl. VAT
33
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
34
Gasket
483783
$9,54 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
