1
Engine displacement
180
2
Model
RUNNER
3
Year
2004
4
Trim
Runner 180 VXR
5
Parts Catalog
Head-Valves
6
Parts Diagram
Parts Catalog
Windshield kit-Stand kit
by
Rocker levers support

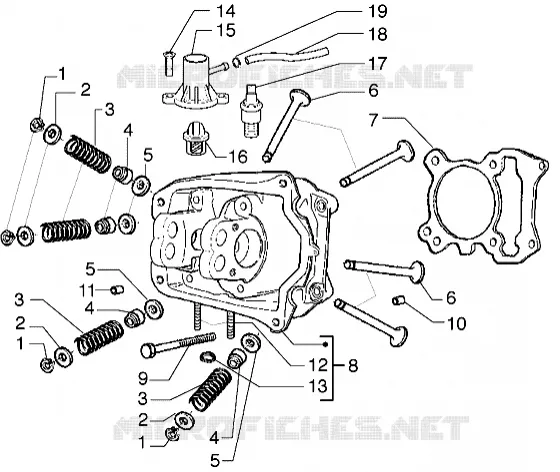

Head-Valves
1
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Valve half-cone
285846
$2,94 Unit Price incl. VAT
2
Upper cap
483914
$0,91 Unit Price incl. VAT
3
Spring
828480
$2,25 Unit Price incl. VAT
4
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
5
Lower cap
483711
$1,35 Unit Price incl. VAT
6
Intake valve
484733
$16,91 Unit Price incl. VAT
6
Exaust valve
484734
$24,59 Unit Price incl. VAT
6
Intake valve
843362
$16,91 Unit Price incl. VAT
7
Gasket
484895
Not Available
8
Cylinder head
829658
Not Available
9
Screw w/ flange
485603
$0,68 Unit Price incl. VAT
10
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
11
Locating dowel
435571
$0,50 Unit Price incl. VAT
12
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
13
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
14
screw M5x16
259151
$4,38 Unit Price incl. VAT
15
Cover
828263
$8,16 Unit Price incl. VAT
16
Thermostat
827827
Not Available
17
Thermistor
82622R
$10,82 Unit Price incl. VAT
18
Head-carb.by-pass pipe
827921
$19,68 Unit Price incl. VAT
19
Hose clamp
CM002902
$2,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
