1
Engine displacement
180
2
Model
RUNNER
3
Year
2004
4
Trim
Runner 180 VXR
5
Parts Catalog

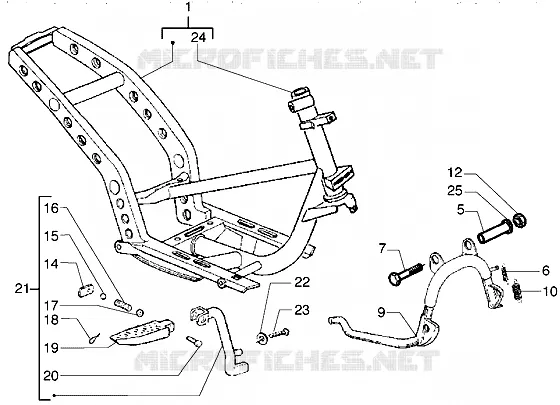

Chassis-Central stand
6
Parts Diagram
Parts Catalog
Silencer
by
Expansion tank
Chassis-Central stand
1
5
6
7
9
10
12
14
15
16
19
20
21
22
23
24
25
1
Frame
5761125
Not Available
5
Spacer
582298
$3,27 Unit Price incl. VAT
6
Spring
581248
$2,01 Unit Price incl. VAT
7
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
9
Central stand
582941
Not Available
10
Spring
581249
$2,44 Unit Price incl. VAT
12
Self locking nut M10
232108
Not Available
14
Rubber mat stop foot rest
295592
Not Available
15
Ball D6
295591
$5,38 Unit Price incl. VAT
16
Premisphere spring
295590
$4,82 Unit Price incl. VAT
19
Foot rest
295451
$6,35 Unit Price incl. VAT
20
Pin
295593
$4,82 Unit Price incl. VAT
21
Footrest
573502
$19,04 Unit Price incl. VAT
21
Footrest
573501
$28,72 Unit Price incl. VAT
22
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
23
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
24
Lock support
298604
$16,40 Unit Price incl. VAT
25
O-ring
273754
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
