by

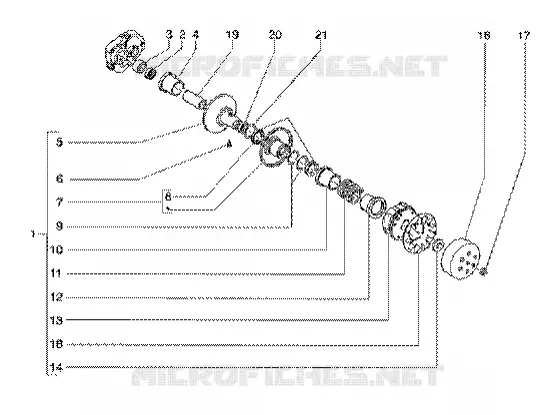

Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
16
17
19
20
21
1
Clutch driven pulley assy.
4854415
Not Available
1
Clutch driven pulley assy.
478751
Not Available
2
Bearing
431068
Not Available
3
Spacer
432307
Not Available
4
Cup
431067
Not Available
5
Pulley, half
826800
Not Available
6
Pin
479415
$0,68 Unit Price incl. VAT
7
Pulley, half
4312855
Not Available
8
Gasket ring
431089
$2,55 Unit Price incl. VAT
9
Gasket
430585
$4,89 Unit Price incl. VAT
10
Pulley side cap
4310935
$9,79 Unit Price incl. VAT
11
Spring
478752
$18,17 Unit Price incl. VAT
12
Clutch side cap
487936
$5,73 Unit Price incl. VAT
13
Clutch assy
485442
Not Available
14
Ring nut
433232
$2,31 Unit Price incl. VAT
16
Clutch drum
82502R
Not Available
17
Flanged nut M12
436783
Not Available
19
Spacer
431070
Not Available
20
Radial bearing 17x30
483261
Not Available
20
Bearing
431069
Not Available
20
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
21
Gasket
431065
$0,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
