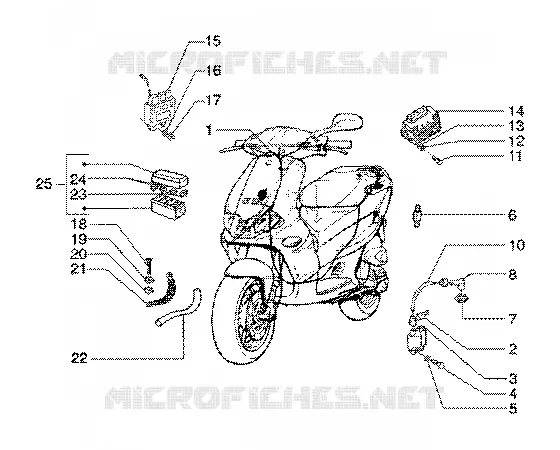

Electrical devices
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Cable harness
294881
Not Available
1
Cable harness
581997
Not Available
1
Cable harness
581046
Not Available
2
Insulating cap
231571
$1,11 Unit Price incl. VAT
3
Electronic control unit
826115
$90,45 Unit Price incl. VAT
4
screw M5x12
031056
$0,09 Unit Price incl. VAT
5
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
6
Diode
294163
$27,67 Unit Price incl. VAT
7
Fairlead
114164
Not Available
8
Screened cap
103936
$8,94 Unit Price incl. VAT
8
Screened cap
825187
Not Available
8
Screened cap
2559835
$8,78 Unit Price incl. VAT
10
H.V. cable
080341
$5,89 Unit Price incl. VAT
11
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
12
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
13
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
14
Regulator
292033
$192,03 Unit Price incl. VAT
15
Device
2933525
Not Available
16
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
17
Self locking nut M5
241937
Not Available
18
screw M6x16
031088
$0,17 Unit Price incl. VAT
19
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
21
Eart braid
294940
Not Available
21
Earth braid
581309
$3,49 Unit Price incl. VAT
22
Insulating sheath
574053
Not Available
23
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
24
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
25
Fuse holder
581190
$7,23 Unit Price incl. VAT
25
Fuse holder
580214
Not Available
26
Plug
581191
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
