1
Engine displacement
500
2
Model
NEXUS
3
Year
2005
4
Trim
Nexus 500
5
Parts Catalog

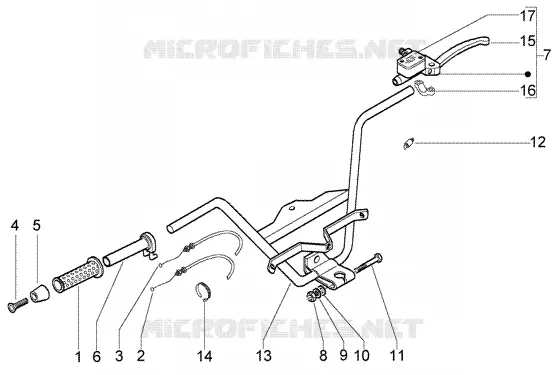

Handlebar-Brake Pump
6
Parts Diagram
Parts Catalog
Instruments Set
by
Brake Pipes-Brake Calipers
Handlebar-Brake Pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
LH hand grip
581900
Not Available
1
RH hand grip
583094
Not Available
2
Transmission
975629
Not Available
3
Transmission
975824
Not Available
4
screw M6x55
271434
Not Available
5
Anti vib.weight trailing
582034
$14,89 Unit Price incl. VAT
6
Hose
975633
Not Available
7
Brakes pump
CM072602
Not Available
7
Brakes pump
CM072601
Not Available
8
Nut M10
015330
$0,25 Unit Price incl. VAT
9
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
10
Flat washer
178790
$0,51 Unit Price incl. VAT
11
screw
223605
Not Available
12
stop Button
583575
$3,26 Unit Price incl. VAT
13
Handlebar
9750795
Not Available
14
Hose clamp
109960
Not Available
15
Brake lever (Brembo)
646829
$27,00 Unit Price incl. VAT
15
Brake lever
497031
Not Available
16
U-bolt and screws
497344
$26,65 Unit Price incl. VAT
17
Brake pump plug
497032
$14,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
