Parts Catalog

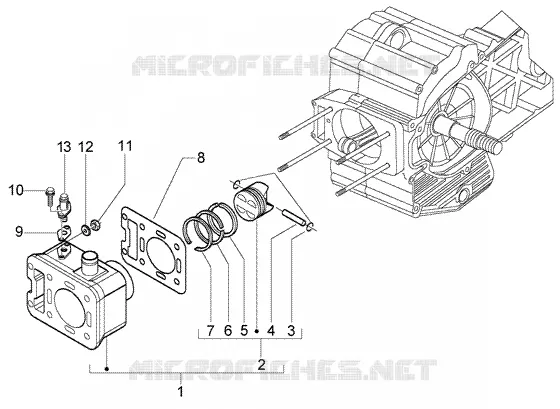

Cylinder-Piston-Wrist Pin, Assy
6
Parts Diagram
Parts Catalog
Rear Wheel
by
Head-Valves
Cylinder-Piston-Wrist Pin, Assy
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Cylinder with piston
832811
Not Available
2
Piston assy cat4
8328120004
Not Available
2
Piston assy
8328120001
Not Available
2
Piston assy cat2
8328120002
Not Available
2
Piston assy cat3
8328120003
Not Available
3
Stop ring
828116
$0,29 Unit Price incl. VAT
4
Piston pin
827820
$26,21 Unit Price incl. VAT
5
Oil scraper ring d.92x2,5
827707
Not Available
6
Oil scraper ring d.92
827706
$39,27 Unit Price incl. VAT
7
Ring
832770
$36,45 Unit Price incl. VAT
8
Cylinder base gasket 0,6
830276
$4,32 Unit Price incl. VAT
8
Cylinder base gasket 0,4
830277
$3,49 Unit Price incl. VAT
8
Cylinder base gasket 0,8
830275
$4,46 Unit Price incl. VAT
9
Gasket
834254
$4,82 Unit Price incl. VAT
10
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
11
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
12
Flat washer
178790
$0,51 Unit Price incl. VAT
13
Chain tensioner bracket
289919
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
