Crankcase for Zip 50 4T 25Km/h E4 from 2018

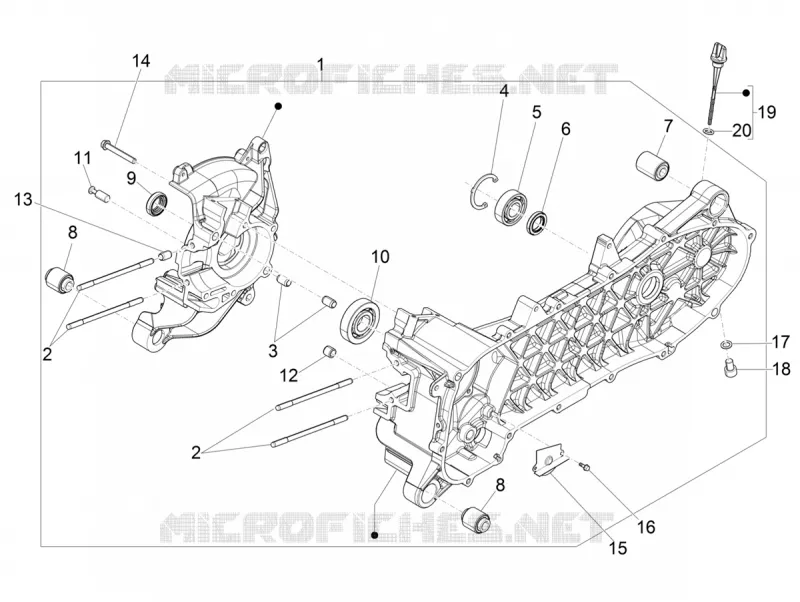

Crankcase

1

Crankcase assembly

1A009077

$421,86 Unit Price incl. VAT

2

Stud bolt

842161

$3,70 Unit Price incl. VAT

3

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

4

Circlip

006647

$1,10 Unit Price incl. VAT

5

Bearing 20x47x14

434735

$7,12 Unit Price incl. VAT

6

Gasket ring

478498

$8,12 Unit Price incl. VAT

7

Silent block

666991

$4,49 Unit Price incl. VAT

8

Silent-block

486081

$6,73 Unit Price incl. VAT

9

Gasket ring 17x28x07

969028

$5,99 Unit Price incl. VAT

10

Bearing

82671R

$12,19 Unit Price incl. VAT

11

Springs fixing pin

483785

$5,45 Unit Price incl. VAT

12

Bush Ã˜8xÃ˜12x8

431860

$3,70 Unit Price incl. VAT

13

Pin d.9,5 h=15

B015956

$0,75 Unit Price incl. VAT

14

Screw w/ flange

478895

$0,50 Unit Price incl. VAT

15

Oil bulhead

969625

$1,43 Unit Price incl. VAT

16

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

17

Gasket

000397

Not Available

18

Hex socket screw M8x12

269755

$0,34 Unit Price incl. VAT

19

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

20

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
