Oil pump for Zip 50 4T 25Km/h E4 from 2018

Oil pump

1

Oil pump assy.

877262

$19,50 Unit Price incl. VAT

2

Screw w/ flange M6x14

874554

$0,25 Unit Price incl. VAT

3

Carter-oil pump gasket

436751

$4,89 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

6

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

7

Oil pump chain

434447

$11,51 Unit Price incl. VAT

8

Motor oil cup

844871

$16,21 Unit Price incl. VAT

9

Screw w/ flange M6x25

414837

Not Available

10

Retainer clamp

487824

$0,33 Unit Price incl. VAT

11

Sump gasket

969132

$1,35 Unit Price incl. VAT

12

Oil level rod cpl.

844721

$2,69 Unit Price incl. VAT

13

O-ring

479986

Not Available

14

Timing system cover cpl.

478324

$34,40 Unit Price incl. VAT

15

Gasket ring

2879633

$9,33 Unit Price incl. VAT

16

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

17

Gasket ring

844888

$3,70 Unit Price incl. VAT

18

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

19

Oil pump control pinion

833495

$361,56 Unit Price incl. VAT

20

O-ring 12,42x1

434947

$2,99 Unit Price incl. VAT

21

Washer

430535

$3,70 Unit Price incl. VAT

22

Timing system chain pinion cpl

969747

Not Available

23

Sliding block

1A005756

$10,38 Unit Price incl. VAT

24

Camshaft chain

96933R

$42,47 Unit Price incl. VAT

25

Chain tensioner rod

1A005975

$13,60 Unit Price incl. VAT

26

Screw w/ flange

B016793

$3,65 Unit Price incl. VAT

27

Spacer

1A006491

$0,50 Unit Price incl. VAT

28

Chain tensioner bracket

847277

Not Available

29

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

30

Guarnizione cilindro/tendicatena

847928

$0,42 Unit Price incl. VAT

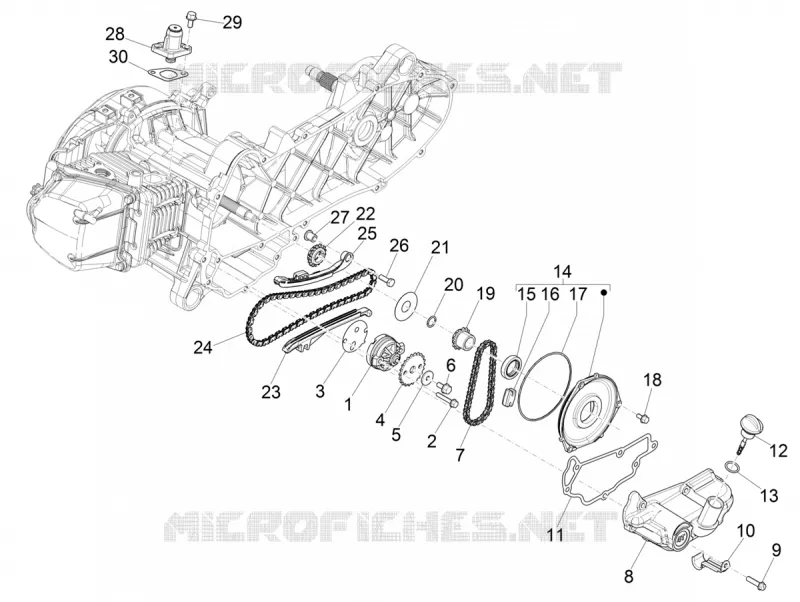

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
