1
Engine displacement
50
2
Model
LIBERTY
3
Year
2018
4
Trim
Liberty Corporate no abs E4
5
Parts Catalog
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
Remote control switches - Battery - Horn

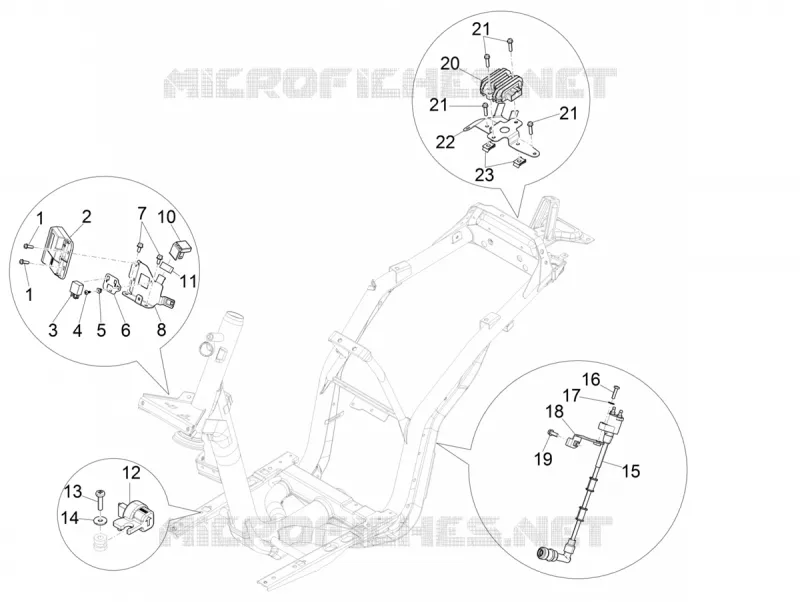

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
1
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
2
Electronic control unit
CM278923
$144,65 Unit Price incl. VAT
2
Electronic control unit
CM278926
$145,42 Unit Price incl. VAT
3
Microrelay with resistance 12V 30A/10A
1D001636
$6,14 Unit Price incl. VAT
4
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
5
Expansion plug
157716
$0,08 Unit Price incl. VAT
6
Relay bracket
CM022807
$5,38 Unit Price incl. VAT
7
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
8
Control unit support bracket with i.p.
1B004107
$10,95 Unit Price incl. VAT
10
Turn indicator control
1D002308
$3,95 Unit Price incl. VAT
11
Device bracket
642317
$0,50 Unit Price incl. VAT
12
Fall sensor
680212
$56,87 Unit Price incl. VAT
13
screw M5x21
015856
$0,16 Unit Price incl. VAT
14
Washer 5,2X15X1,5
224664
$1,26 Unit Price incl. VAT
15
Complete H.V. coil
CM271702
$33,12 Unit Price incl. VAT
16
screw M5x21
015856
$0,16 Unit Price incl. VAT
17
Washer
012528
$0,34 Unit Price incl. VAT
18
Device bracket
1B004948
$3,73 Unit Price incl. VAT
19
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
20
Voltage regulator
1A0107805
$83,90 Unit Price incl. VAT
21
Screw w/ flange M6x25
414837
Not Available
22
Bracket
1B005302
$12,15 Unit Price incl. VAT
23
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
