1
Engine displacement
50
2
Model
LIBERTY
3
Year
2018
4
Trim
Liberty Corporate no abs E4
5
Parts Catalog
Air filter
6

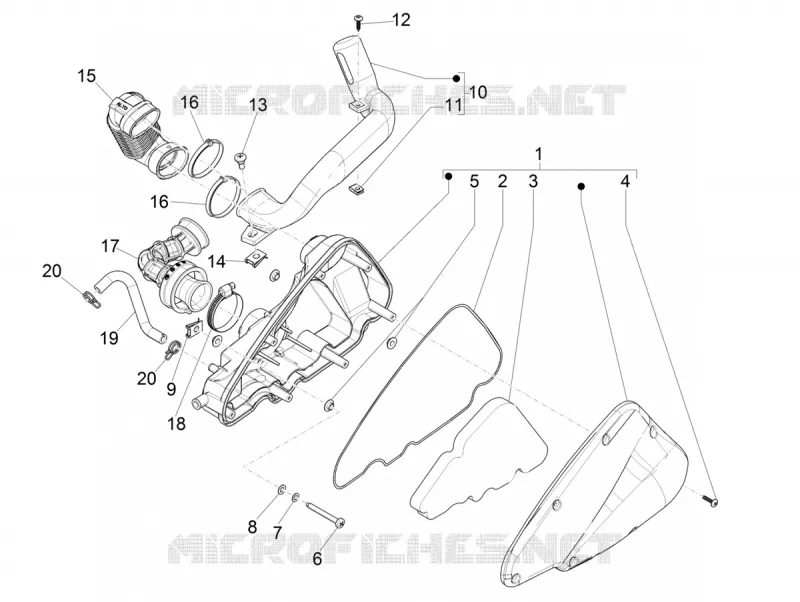

Parts Diagram
Parts Catalog
Front shield
by
Cylinder-piston-wrist pin unit
Air filter
20
20
19
18
17
16
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Complete air cleaner box
1A007601
$34,66 Unit Price incl. VAT
2
Air filter
875525
Not Available
3
Gasket
487286
$10,00 Unit Price incl. VAT
4
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
5
Knurled bushing
830056
$0,34 Unit Price incl. VAT
6
Special cap screw M6x55
1B000678
$0,51 Unit Price incl. VAT
7
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
8
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Inlet duct
1B005445
$15,49 Unit Price incl. VAT
11
Spring plate
CM017410
$0,34 Unit Price incl. VAT
12
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
13
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
14
Spring plate M6
254485
$0,34 Unit Price incl. VAT
15
Suction bellows
1B005443
$7,56 Unit Price incl. VAT
16
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
17
Air cleaner sleeve / throttle body
1A009622
$11,06 Unit Price incl. VAT
18
Hose clamp
1A000833
$5,99 Unit Price incl. VAT
19
Intake pipe
1A001692
$5,38 Unit Price incl. VAT
20
Hose clamp
CM002917
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
