Oil pump FOR Liberty Corporate no abs E4 FROM 2018

Oil pump

1

Oil pump assy.

877262

$19,50 Unit Price incl. VAT

2

Screw w/ flange M6x14

874554

$0,25 Unit Price incl. VAT

3

Carter-oil pump gasket

436751

$4,89 Unit Price incl. VAT

4

Oil pump gear

287913

$6,47 Unit Price incl. VAT

5

Belleville spring Ã˜6,4xÃ˜20x2

436695

$0,59 Unit Price incl. VAT

6

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

7

Oil pump chain

434447

$11,51 Unit Price incl. VAT

8

Motor oil cup

844871

$16,21 Unit Price incl. VAT

9

Screw w/ flange M6x25

414837

Not Available

10

Hose clamp

1C002006

$3,65 Unit Price incl. VAT

11

Sump gasket

969132

$1,35 Unit Price incl. VAT

12

Complete oil level dipstick

1A008644

$1,53 Unit Price incl. VAT

13

O-ring

479986

Not Available

14

Timing system cover cpl.

478324

$34,40 Unit Price incl. VAT

15

Gasket ring

2879633

$9,33 Unit Price incl. VAT

16

Oil pump chain drift

434345

$2,77 Unit Price incl. VAT

17

Gasket ring

844888

$3,70 Unit Price incl. VAT

18

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

19

Oil pump control pinion

833495

$361,56 Unit Price incl. VAT

20

O-ring 12,42x1

434947

$2,99 Unit Price incl. VAT

21

Washer

430535

$3,70 Unit Price incl. VAT

22

Timing system chain pinion cpl

969747

Not Available

23

Sliding block

1A005756

$10,38 Unit Price incl. VAT

24

Camshaft chain

96933R

$42,47 Unit Price incl. VAT

25

Chain tensioner rod

1A005975

$13,60 Unit Price incl. VAT

26

Hex screw M6x18

031089

$2,99 Unit Price incl. VAT

27

Spacer

1A006491

$0,50 Unit Price incl. VAT

28

Chain tensioner bracket

289919

Not Available

29

Screw w/ flange M6x14

B016426

$0,42 Unit Price incl. VAT

30

Guarnizione cilindro/tendicatena

847928

$0,42 Unit Price incl. VAT

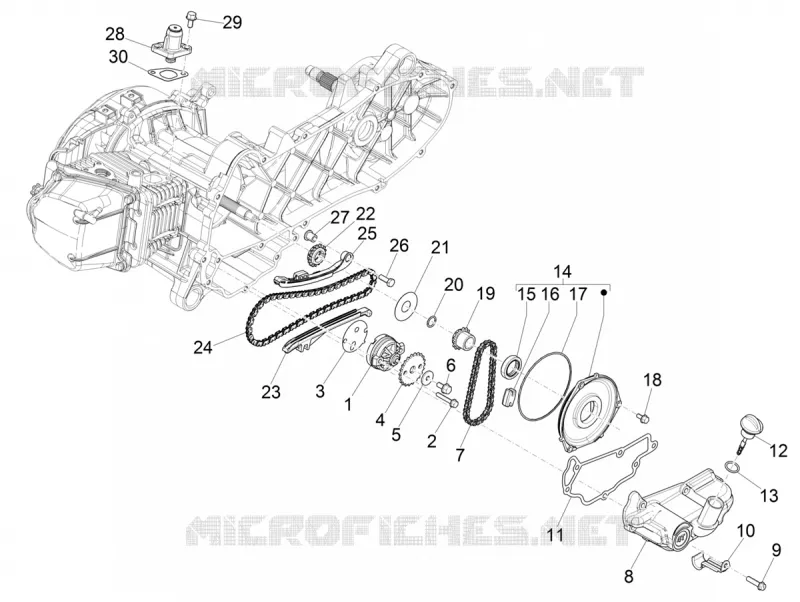

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
