1
Engine displacement
125
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Crankcase cover, clutch side
by

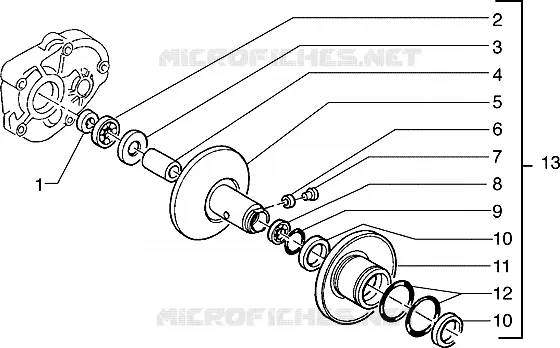

Driven pulley
Driven pulley
1
2
3
4
5
6
7
8
9
10
10
11
12
13
1
Spacer
432307
Not Available
2
Bearing
431068
Not Available
3
Cup
431067
Not Available
4
Spacer
431070
Not Available
5
Pulley, half
4310845
Not Available
6
Roller
431091
$0,67 Unit Price incl. VAT
7
Pin
431092
Not Available
8
Bearing
431069
Not Available
9
Gasket
431065
$0,42 Unit Price incl. VAT
10
Gasket ring
431089
$2,55 Unit Price incl. VAT
11
Pulley, half
4312855
Not Available
12
Gasket
430585
$4,89 Unit Price incl. VAT
13
Clutch driven pulley assy.
4854415
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
