1
Engine displacement
125
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon
5
Parts Catalog

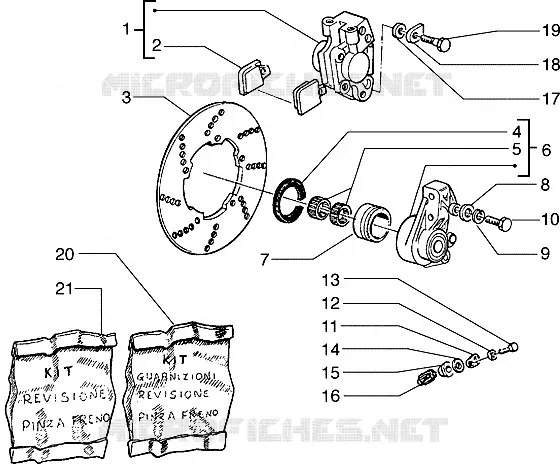

Brake caliper - Brake disc
6
Parts Diagram
Parts Catalog
Disc brake
by
Front shock absorber
Brake caliper - Brake disc
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Caliper (Heng Tong)
599754
Not Available
1
Caliper (Brembo)
560423
Not Available
2
Brake pads kit
498454
Not Available
3
Brake disc
271122
Not Available
4
Gasket ring
271279
Not Available
5
Drawn cap
177436
$9,18 Unit Price incl. VAT
6
Maintenance
2712785
Not Available
7
Chain ring
273408
Not Available
8
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
9
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
10
screw
597150
$3,65 Unit Price incl. VAT
11
Plate
274644
Not Available
12
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
13
screw M5x16
031058
$2,95 Unit Price incl. VAT
14
Pad
271266
Not Available
15
Maintenance
271265
Not Available
16
Pinion
271262
Not Available
17
Spring washer
709047
$0,08 Unit Price incl. VAT
18
Plate
269530
Not Available
19
screw
031120
$0,42 Unit Price incl. VAT
20
Kit caliper overh.
498434
Not Available
21
Kit caliper overh.
498443
Not Available
21
Kit caliper overh.
494517
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
