Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Driven pulley
by
Side cover - Spoiler
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
11
12
12
12
12
13
13
14
14
14
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
31
31
31
32
32
33
34
35
36
37
38
39
40
41
41
42
43
44
44
45
46
47
48
49
50
51
52
52
1
Steering control tube with i.p.
667658
$350,74 Unit Price incl. VAT
2
Steering tube control axis
622751
$35,81 Unit Price incl. VAT
3
Snap ring
006628
$0,34 Unit Price incl. VAT
4
Safety washer
006408
$0,09 Unit Price incl. VAT
5
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
6
Washer
006032
$0,56 Unit Price incl. VAT
7
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
8
Complete steering control tie rod.
622744
$70,77 Unit Price incl. VAT
9
Gasket ring
167018
$6,35 Unit Price incl. VAT
10
Roller cage
167016
$5,67 Unit Price incl. VAT
11
Complete cardan joint
666901
$107,96 Unit Price incl. VAT
12
Nut M8x1,25
967363
$0,51 Unit Price incl. VAT
13
Washer 16.2x25x1.5
666546
$4,36 Unit Price incl. VAT
14
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
15
Lower steering bearing
650075
Not Available
16
Upper thrust ring
650693
Not Available
17
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
18
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
19
O-ring 8,73x1,78-viton
224202
$0,66 Unit Price incl. VAT
20
Lower complete rear suspension arm
646556
$178,60 Unit Price incl. VAT
21
Snap ring
006635
$0,25 Unit Price incl. VAT
22
Ball bearing
601345
$12,69 Unit Price incl. VAT
23
Circlip
006647
$1,10 Unit Price incl. VAT
24
Ball bearing
601467
$18,36 Unit Price incl. VAT
25
Upper complete rear suspension arm
646561
$166,91 Unit Price incl. VAT
26
Snap ring
006635
$0,25 Unit Price incl. VAT
27
Ball bearing
601345
$12,69 Unit Price incl. VAT
28
Circlip
006647
$1,10 Unit Price incl. VAT
29
Ball bearing
601467
$18,36 Unit Price incl. VAT
30
Hex screw M10x30
031157
$0,51 Unit Price incl. VAT
31
Washer
012535
$0,08 Unit Price incl. VAT
32
Bushing
621288
$6,30 Unit Price incl. VAT
33
Flat washer
178790
$0,51 Unit Price incl. VAT
34
screw
030113
$3,65 Unit Price incl. VAT
35
Nut
564878
$2,99 Unit Price incl. VAT
36
screw
975855
$3,65 Unit Price incl. VAT
37
Spring washer
709047
$0,08 Unit Price incl. VAT
38
Suspension arm connection bracket
646543
$35,51 Unit Price incl. VAT
39
Lateral headstock with U.P.
647214
Not Available
40
Steering bearing assy. R.H.
6471835
Not Available
41
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
42
Upper thrust ring
600750
Not Available
43
Steering bearing assy. L.H.
6007705
$139,05 Unit Price incl. VAT
44
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
45
Upper thrust ring
600750
Not Available
46
Screw M5x22
828662
$0,25 Unit Price incl. VAT
47
Cardan joint small cover
647202
$13,84 Unit Price incl. VAT
48
Brake piping slider
624854
$1,97 Unit Price incl. VAT
49
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
50
Guard washer
600356
$0,94 Unit Price incl. VAT
51
Guard washer
600356
$0,94 Unit Price incl. VAT
52
Protective sleeve
666244
$15,22 Unit Price incl. VAT

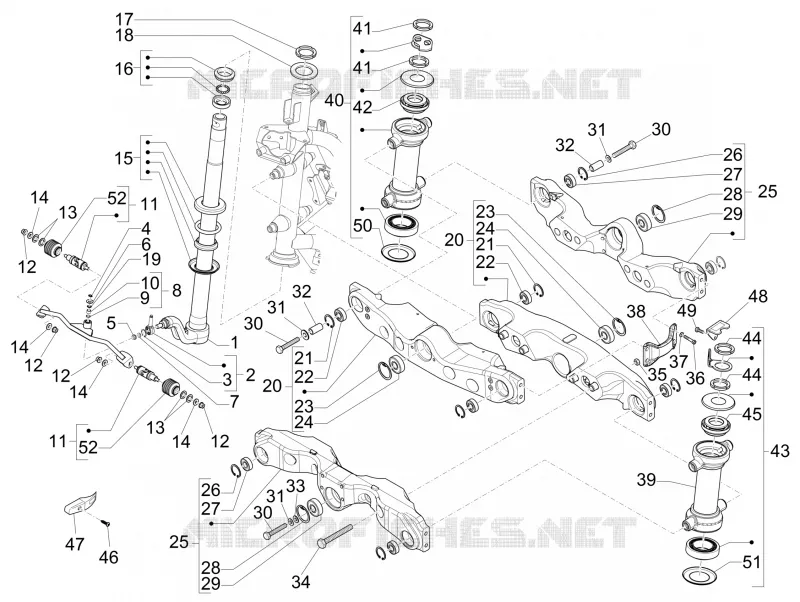

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
