1
Engine displacement
500
2
Model
MP3
3
Year
2015
4
Trim
MP3 500 Business
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Plates - Emblems
Central cover - Footrests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
33
34
34
34
34
34
35
35
36
37
38
38
39
40
41
42
43
44
45
46
47
48
1
Tunnel
2B0007120000C
$160,77 Unit Price incl. VAT
2
Fuel filler lid
2B0007110000C
$218,41 Unit Price incl. VAT
3
Plate
AP8161182
$10,00 Unit Price incl. VAT
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Maintenance
620491
$1,43 Unit Price incl. VAT
6
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
7
Cam lever
576626
$1,51 Unit Price incl. VAT
8
Spring
575604
$0,92 Unit Price incl. VAT
9
Spring
621507
$2,77 Unit Price incl. VAT
10
Flap retainer plate
624465
$6,30 Unit Price incl. VAT
11
Knurled bushing
830056
$0,34 Unit Price incl. VAT
12
Lh mat
623186
$26,74 Unit Price incl. VAT
13
Rh mat
655842
$26,74 Unit Price incl. VAT
14
Left fuse access flap
2B000750000ET
$65,78 Unit Price incl. VAT
14
Left fuse access flap
2B000750
$29,51 Unit Price incl. VAT
15
Right fuse access flap
2B000749000ET
$65,78 Unit Price incl. VAT
15
Right fuse access flap
2B000749
$29,51 Unit Price incl. VAT
16
screw
015728
$2,95 Unit Price incl. VAT
17
Right central side
1B002013000ET
$122,96 Unit Price incl. VAT
17
Right central side
1B002013
$92,22 Unit Price incl. VAT
17
Right central side
2B000717000ET
Not Available
17
Right central side
2B000717
$92,22 Unit Price incl. VAT
18
Spring plate
CM017410
$0,34 Unit Price incl. VAT
19
Spark plug insp. door SX
653287000C
$17,83 Unit Price incl. VAT
20
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
21
Self tapping screw
297498
$0,08 Unit Price incl. VAT
22
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
23
Spring plate
CM017410
$0,34 Unit Price incl. VAT
24
RH footrest
2B0007190000C
$73,77 Unit Price incl. VAT
25
LH footrest
2B0007200000C
$73,77 Unit Price incl. VAT
26
Left central side
1B002012
$92,22 Unit Price incl. VAT
26
Left central side
2B000718000ET
Not Available
26
Left central side
2B000718
$92,22 Unit Price incl. VAT
26
Left central side
1B002012000ET
$122,96 Unit Price incl. VAT
27
Spark plug insp. door DX
623254000C
$17,83 Unit Price incl. VAT
28
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
29
Washer
297029
$3,70 Unit Price incl. VAT
30
Spring plate
CM017410
$0,34 Unit Price incl. VAT
31
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
32
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
33
Spring plate
230359
$2,95 Unit Price incl. VAT
34
Spring plate M6
254485
$0,34 Unit Price incl. VAT
35
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
36
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
37
Metric screw
CM179307
$2,99 Unit Price incl. VAT
38
Complete left footrest
65682300ET
Not Available
39
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
40
Elastic spring
259933
$0,08 Unit Price incl. VAT
41
LH rear footrests rubber
656993
$11,34 Unit Price incl. VAT
42
Premisphere spring
295590
$4,82 Unit Price incl. VAT
43
Ball D6
295591
$5,38 Unit Price incl. VAT
44
screw
975805
$3,65 Unit Price incl. VAT
45
Complete right footrest
65682500ET
$79,16 Unit Price incl. VAT
46
RH rear footrests rubber
656994
$11,34 Unit Price incl. VAT
47
Hex socket screw
582428
$0,34 Unit Price incl. VAT
48
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT

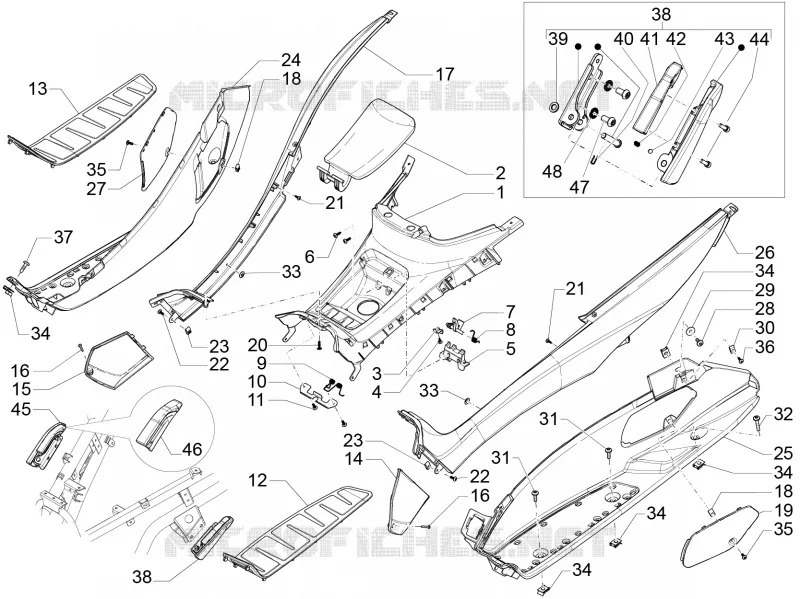

Find the detailed Central cover - Footrests GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
