Crankcase for GILERA PIAGGIO VESPA Liberty 4T PTT E3 (A) from 2007

Crankcase

1

Complete crankcase Cat.2

CM1280085002

Not Available

1

Complete crankcase Cat.1

CM1280085001

Not Available

2

SCODELLINO

840489

$0,33 Unit Price incl. VAT

3

Pin 6,5x9,5x15

239388

Not Available

4

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

5

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

6

BUSSOLA (GRUPPO RINVIO)

431860

$3,70 Unit Price incl. VAT

7

Radial ball bearing 15x42x13

485912

Not Available

8

Radial bearing 20x47x14

485913

Not Available

9

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

10

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

11

screw M6x60

432142

$0,19 Unit Price incl. VAT

12

Circlip 25x26.9x1.2

000674

Not Available

13

Gasket ring

82539R

Not Available

13

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

14

ANELLO DI TENUTA

82898R

$4,36 Unit Price incl. VAT

14

Gasket ring

82540R

Not Available

15

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

16

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

17

Half crankcase gasket

845212

Not Available

18

screw M6x60

432142

$0,19 Unit Price incl. VAT

19

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

20

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

21

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

22

Screw M5x10

018575

$2,95 Unit Price incl. VAT

23

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

24

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

25

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

26

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

27

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

28

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

29

Plate

828766

$0,24 Unit Price incl. VAT

30

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

31

Stud bolt

411295

$1,58 Unit Price incl. VAT

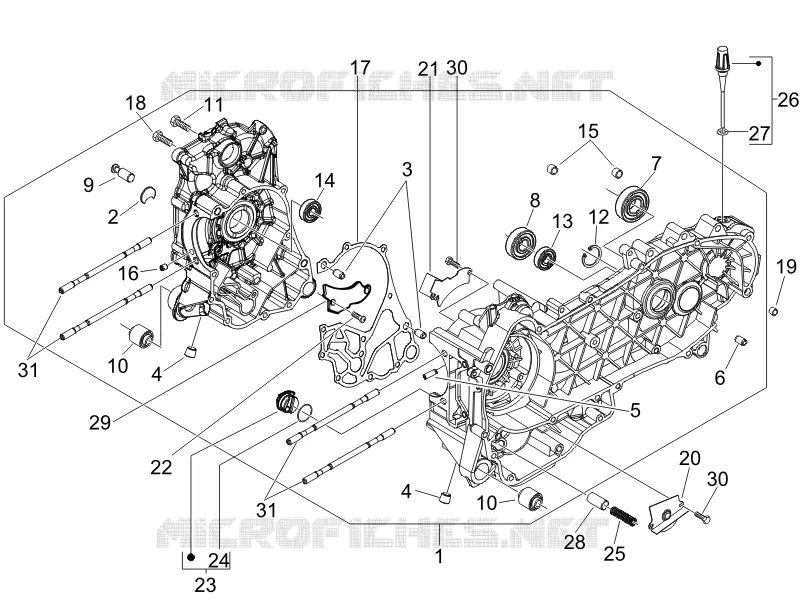

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
