Brakes pipes - Calipers for BV ie Tourer from 2011

Brakes pipes - Calipers

1

Brake caliper Heng Tong

CM068301

Not Available

2

Brake pads couple Heng Tong

647078

$35,62 Unit Price incl. VAT

3

screw

598919

$2,27 Unit Price incl. VAT

4

Spring washer

709047

$0,08 Unit Price incl. VAT

5

Front brake flexible piping

600878

Not Available

6

Gasket

127927

$0,25 Unit Price incl. VAT

7

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

8

Oil pipe screw M10x18

265451

$9,25 Unit Price incl. VAT

9

Screw w/ flange M6x30

289731

Not Available

10

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

10

Spacer L=228 mm

CM067803

$11,11 Unit Price incl. VAT

11

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

12

Brake caliper Heng Tong

CM068301

Not Available

13

Brake pads couple Heng Tong

647078

$35,62 Unit Price incl. VAT

14

Rear brake flexible pipe

600532

Not Available

15

Hex socket screw

598920

$3,65 Unit Price incl. VAT

16

Spring washer

709047

$0,08 Unit Price incl. VAT

17

Brake caliper support plate

649417

$7,23 Unit Price incl. VAT

18

screw

030074

$3,65 Unit Price incl. VAT

19

Self locking nut M8

195483

Not Available

20

Flat washer 8,2x17x2,5

828961

$0,28 Unit Price incl. VAT

21

Hose clamp

217280

Not Available

22

Hose clamp

597418

$3,65 Unit Price incl. VAT

23

Hose clamp

561886

$3,40 Unit Price incl. VAT

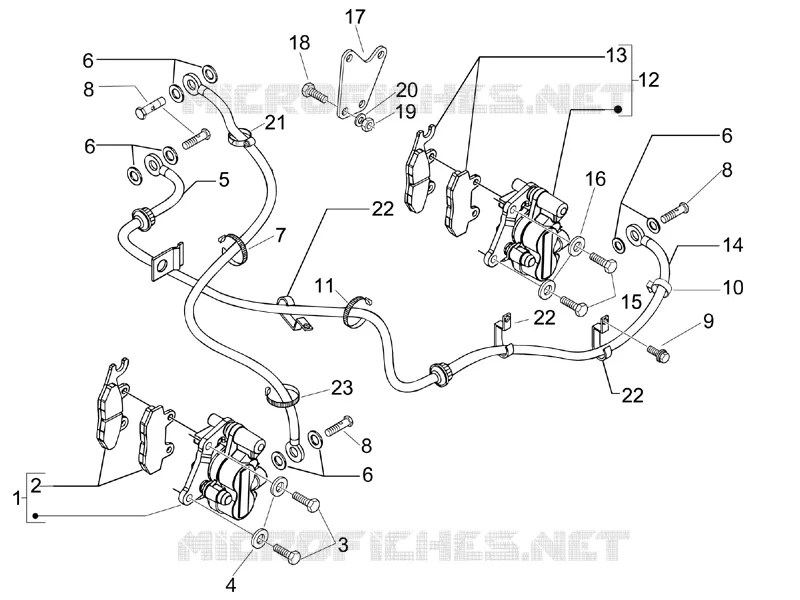

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
