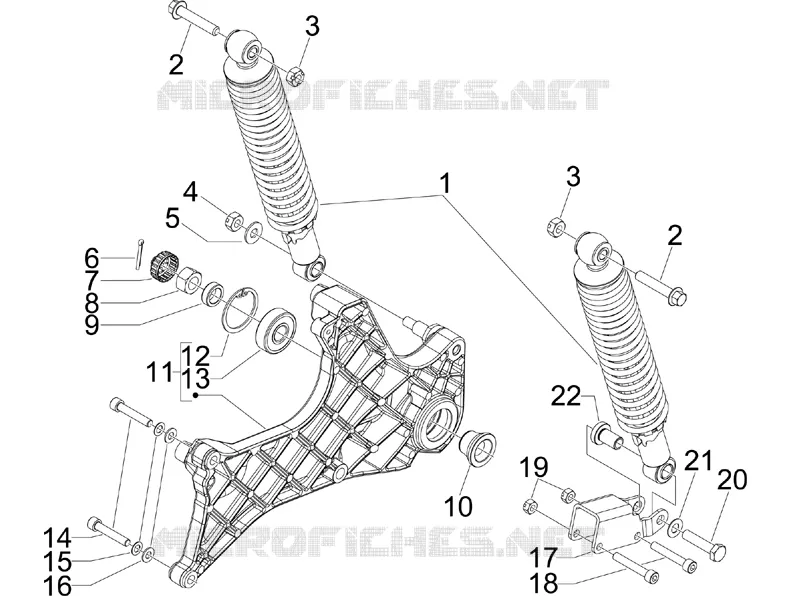

Rear suspension - Shock absorber/s for BV ie Tourer from 2011

Rear suspension - Shock absorber/s

1

COMPL. REAR SHOCK ABSORBER (KAYABA)

601014

$160,65 Unit Price incl. VAT

2

Screw w/ flange M10

268158

$1,26 Unit Price incl. VAT

3

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

4

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

5

Washer

016627

Not Available

6

Split pin

012789

$0,16 Unit Price incl. VAT

7

Nut hold cap

194423

$0,48 Unit Price incl. VAT

8

Nut M16x13

563728

$1,42 Unit Price incl. VAT

9

Spacer

597528

$1,51 Unit Price incl. VAT

10

Wheel spacer

848039

$18,12 Unit Price incl. VAT

11

Suspension arm

599867

$94,50 Unit Price incl. VAT

12

Circlip

006647

$1,10 Unit Price incl. VAT

13

Ball bearing

82545R

$12,11 Unit Price incl. VAT

14

Hex socket screw

826298

$0,66 Unit Price incl. VAT

15

Washer

013776

$0,34 Unit Price incl. VAT

16

Spring washer

709047

$0,08 Unit Price incl. VAT

17

plate

597979

$8,16 Unit Price incl. VAT

18

Hex socket screw M8x50

844483

$0,67 Unit Price incl. VAT

19

Self locking nut M8

195483

Not Available

20

Screw m10x45

030098

Not Available

21

Washer

709646

Not Available

22

Bush

597980

$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
