1
Engine displacement
300
2
Model
BEVERLY
3
Year
2010
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Central cover - Footrests
6
Parts Diagram
Parts Catalog
Throttle body - Injector - Union pipe
by
Helmet huosing - Undersaddle

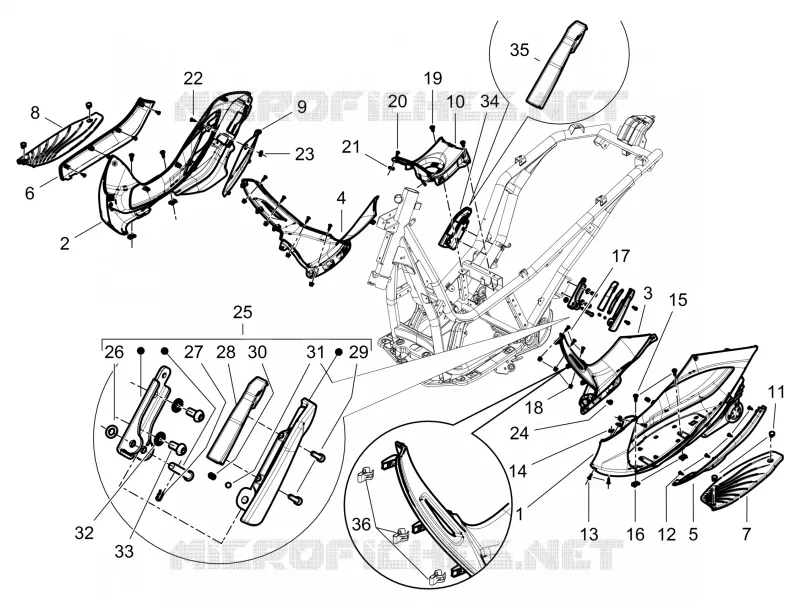

Central cover - Footrests
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Rubber mat l.h.
672624000C
$36,58 Unit Price incl. VAT
2
Rubber mat r.h.
673207000C
$36,58 Unit Price incl. VAT
3
Left central cover
65634400EU
$77,09 Unit Price incl. VAT
3
Left central cover
656344
$109,13 Unit Price incl. VAT
3
Left central cover
65634400NM
Not Available
4
Right central cover
65634500EU
$77,09 Unit Price incl. VAT
4
Right central cover
656345
$109,13 Unit Price incl. VAT
4
Right central cover
65634500NM
$75,56 Unit Price incl. VAT
5
Left spoiler
656351
$37,35 Unit Price incl. VAT
5
Left spoiler
1B000223
$10,02 Unit Price incl. VAT
5
Left spoiler
65635100EU
Not Available
6
Right spoiler
1B000224
Not Available
6
Right spoiler
656352
$37,35 Unit Price incl. VAT
6
Right spoiler
65635200EU
$38,71 Unit Price incl. VAT
7
Lh mat
656828
$42,72 Unit Price incl. VAT
8
Rh mat
656829
$42,72 Unit Price incl. VAT
9
Spark plug insp. door
656361000C
$7,23 Unit Price incl. VAT
10
Structure central cover
65634600NM
Not Available
10
Central cover
65634600EU
Not Available
10
Central cover
656346
$16,21 Unit Price incl. VAT
11
Pin
CM011101
$5,38 Unit Price incl. VAT
12
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
13
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
14
Spring plate
CM017410
$0,34 Unit Price incl. VAT
15
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
16
Spring plate M6
254485
$0,34 Unit Price incl. VAT
17
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
18
Expansion plug
199190
$2,95 Unit Price incl. VAT
19
screw
CM179202
$0,25 Unit Price incl. VAT
20
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
21
Spring plate
CM017410
$0,34 Unit Price incl. VAT
22
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
23
Spring plate
CM017410
$0,34 Unit Price incl. VAT
24
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
25
Complete left footrest
65682300EU
$30,39 Unit Price incl. VAT
25
Complete left footrest
6568230090
$79,16 Unit Price incl. VAT
26
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
27
Elastic spring
259933
$0,08 Unit Price incl. VAT
28
LH rear footrests rubber
656993
$11,34 Unit Price incl. VAT
29
screw
975805
$3,65 Unit Price incl. VAT
30
Premisphere spring
295590
$4,82 Unit Price incl. VAT
31
Ball D6
295591
$5,38 Unit Price incl. VAT
32
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
33
Hex socket screw
582428
$0,34 Unit Price incl. VAT
34
Complete right footrest
6568250090
$79,16 Unit Price incl. VAT
34
Complete right footrest
65682500EU
$30,39 Unit Price incl. VAT
35
RH rear footrests rubber
656994
$11,34 Unit Price incl. VAT
36
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
