Engine displacement
300
2
Model
BEVERLY
3
Year
2010
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Fork's components (Kayaba)
by
Stand/s
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
17
17
17
18
18
19
20
21
22
22
22
23
23
24
25
26
1
Frame harness
641715
Not Available
1
Frame harness
680007
Not Available
2
Relay bracket
CM022804
$5,38 Unit Price incl. VAT
3
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
4
Mini fuse 5A
CM080904
$1,09 Unit Price incl. VAT
4
Mini fuse 10A
CM080906
$1,09 Unit Price incl. VAT
4
Mini fuse 30A
CM080910
$0,77 Unit Price incl. VAT
4
Mini fuse 15A
CM080907
$1,09 Unit Price incl. VAT
5
Plug connect diagnos ECU
582928
$1,01 Unit Price incl. VAT
6
Ground cable
584843
$9,18 Unit Price incl. VAT
7
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
8
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
10
Ambient temperature sensor
581142
Not Available
11
LV socket 12V
294770
$17,07 Unit Price incl. VAT
12
-
565560
Not Available
13
Luminous ring
565559
Not Available
14
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
15
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
16
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
17
Elastic spring
231590
$0,25 Unit Price incl. VAT
18
Lock-strap
641605
$3,65 Unit Price incl. VAT
19
Pipes/cables retainer spring L=16
CM006907
$1,51 Unit Price incl. VAT
20
Non return spring
CM006902
$0,92 Unit Price incl. VAT
21
Spring for connector
639560
$0,67 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
24
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
25
Maintenance
584002
$1,77 Unit Price incl. VAT
26
Non return spring L=12
CM006905
$1,35 Unit Price incl. VAT

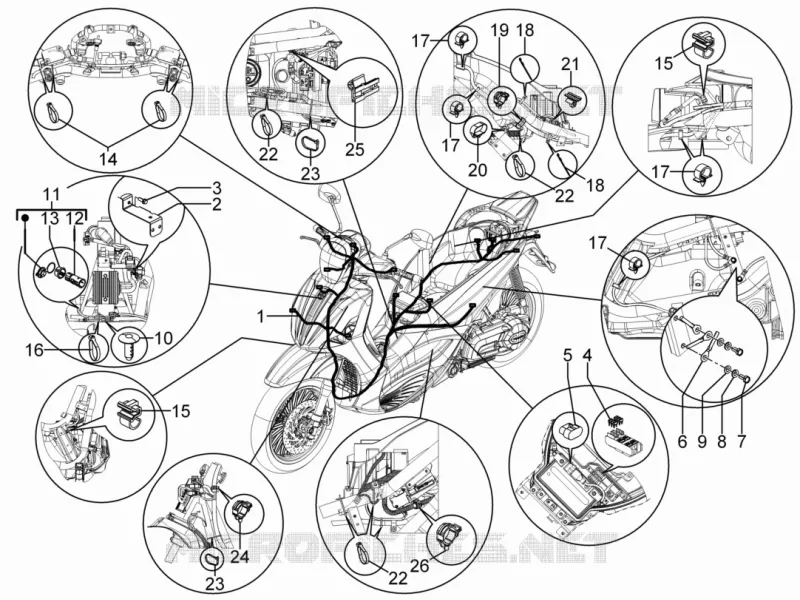

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
