1
Engine displacement
300
2
Model
BEVERLY
3
Year
2016
4
Trim
Beverly ie ABS E4
5
Parts Catalog

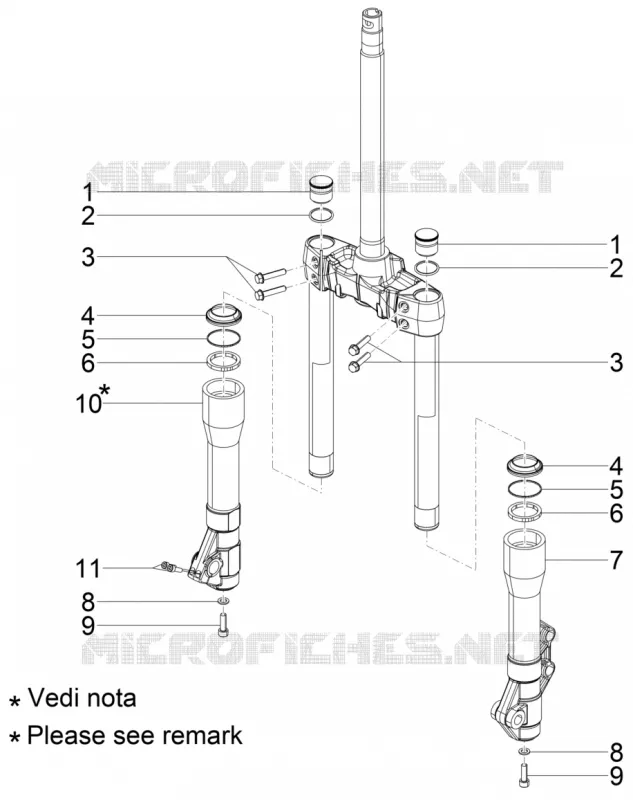

Fork's components (Kayaba)
6
Parts Diagram
Parts Catalog
Air filter
by
Stand/s
Fork's components (Kayaba)
1
1
2
2
3
3
4
4
5
5
6
6
7
8
8
9
9
10
11
1
Plug
666390
$13,47 Unit Price incl. VAT
2
O-ring
666389
$4,82 Unit Price incl. VAT
3
screw
649992
$5,20 Unit Price incl. VAT
4
Dust cover ring
600269
$21,98 Unit Price incl. VAT
5
Gasket ring
497132
$3,65 Unit Price incl. VAT
6
Fork oil seal
601310
$25,95 Unit Price incl. VAT
7
L.H. sleeve assy
666393
$649,50 Unit Price incl. VAT
8
Washer (Kayaba)
599270
$3,65 Unit Price incl. VAT
9
screw
666387
$3,65 Unit Price incl. VAT
10
R.H. sleeve assy
666392
Not Available
11
screw
649619
$3,65 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
