Wheel huosing - Mudguard for GILERA PIAGGIO VESPA BV from 2007

Wheel huosing - Mudguard

1

PARAFANGO POSTERIORE

621089

$44,42 Unit Price incl. VAT

2

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

3

VITE

271891

$3,65 Unit Price incl. VAT

4

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

5

Front mudguard

653588

$344,44 Unit Price incl. VAT

5

Front mudguard

65358800DE

$434,20 Unit Price incl. VAT

5

FRONT FENDER

65358800RE

$434,20 Unit Price incl. VAT

5

Front mudguard

65358800F2

Not Available

5

Front mudguard

65358800ND

Not Available

5

FRONT FENDER

65358800AF

$434,20 Unit Price incl. VAT

6

PROTEZIONE PARAFANGO

598794

$7,69 Unit Price incl. VAT

7

Bracket

597795

Not Available

8

VITE METRICA CON CODOLO

575249

$0,66 Unit Price incl. VAT

9

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

10

VITE TE M6X12

031086

$0,08 Unit Price incl. VAT

11

RONDELLA ELASTICA CURVATA

006966

$0,08 Unit Price incl. VAT

12

Plate

597923

$5,38 Unit Price incl. VAT

13

Wheel compartment

621448000C

Not Available

14

Metric screw M6x20

259830

$0,09 Unit Price incl. VAT

15

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

16

VITE

258249

$0,09 Unit Price incl. VAT

17

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

18

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

19

Right lateral retroreflector

584084

$5,49 Unit Price incl. VAT

20

PIASTRINA ELASTICA

181351

$0,17 Unit Price incl. VAT

21

BASETTA"USA" PER CATADIOTTRO LAT.

584079

$5,38 Unit Price incl. VAT

22

Left lateral retroreflector

584083

Not Available

23

BASETTA "USA"PER CATADIOTTRO LAT.

584078

$5,38 Unit Price incl. VAT

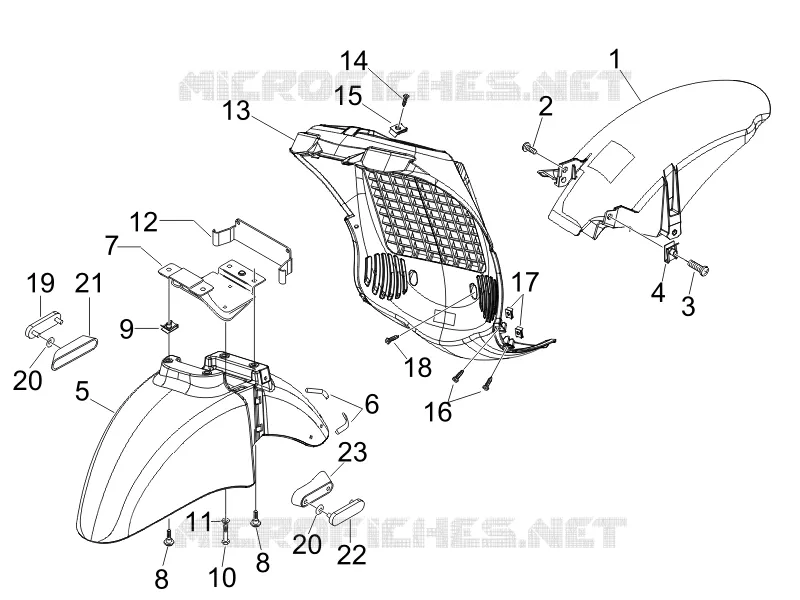

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
