Oil pump for GILERA PIAGGIO VESPA BV from 2007

Oil pump

1

Oil pump assembly

844352

Not Available

1

Oil pump assembly

82877R

Not Available

2

VITE A TESTA ESAGONALE FLANGIATA

829593

$0,50 Unit Price incl. VAT

3

Carter-oil pump gasket

486082

$0,29 Unit Price incl. VAT

3

GUARNIZIONE CARTER/POMPA OLIO

847929

$0,34 Unit Price incl. VAT

4

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

5

Screw w/ flange M6x14

833722

Not Available

6

MOLLA A TAZZA

436695

$0,59 Unit Price incl. VAT

7

COPPA DELL'OLIO MOTORE

846096

$11,92 Unit Price incl. VAT

8

Screw w/ flange M6x30

289731

Not Available

9

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

10

FASCETTA

564629

$2,50 Unit Price incl. VAT

11

Oil filler plug

846819

Not Available

12

O-ring

479986

Not Available

13

GUARNIZIONE CARTER/COPPA OLIO

846098

$3,28 Unit Price incl. VAT

14

COPERCHIO DISTRIBUZIONE

847116

$22,74 Unit Price incl. VAT

15

CATENA POMPA OLIO (50 PS)

82649R

$13,37 Unit Price incl. VAT

16

PIGNONE COM.POMPA OLIO

82783R

$7,99 Unit Price incl. VAT

17

ANELLO DI TENUTA (O-RING)

825952

$0,15 Unit Price incl. VAT

18

RONDELLA PARAOLIO

483918

$0,53 Unit Price incl. VAT

19

ASTA TENDICATENA

840344

$4,20 Unit Price incl. VAT

20

Screw w/ flange M6x25

414837

Not Available

21

Chain tensioner rod spacer

485868

$0,29 Unit Price incl. VAT

22

CATENA DISTRIBUZIONE SILENZIATORE

82723R

$24,71 Unit Price incl. VAT

23

PIGNONE DISTRIBUZIONE

82782R

$7,06 Unit Price incl. VAT

25

PATTINO FISSO

847516

$4,25 Unit Price incl. VAT

26

COMPLESSIVO TENDICATENA

82650R

$34,52 Unit Price incl. VAT

27

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

28

GUARNIZIONE CIL./SUPP.TENDICATENA

847928

$0,42 Unit Price incl. VAT

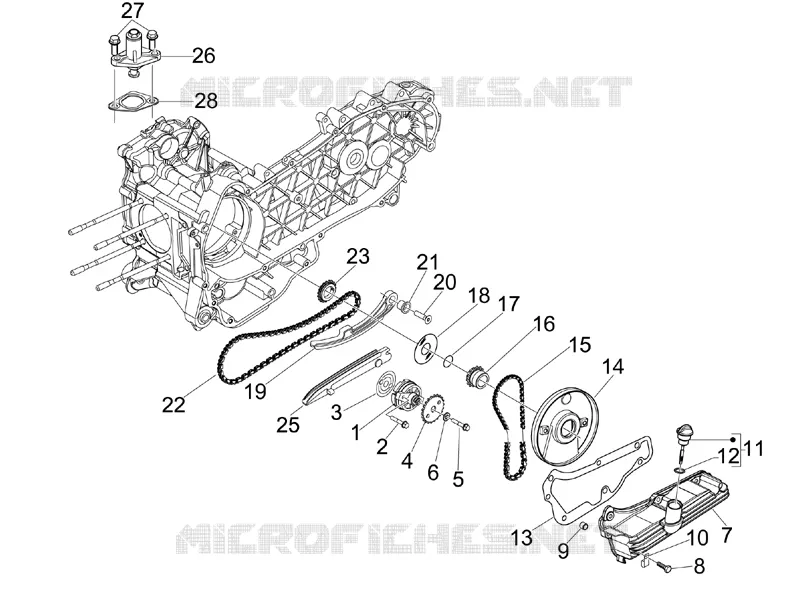

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
