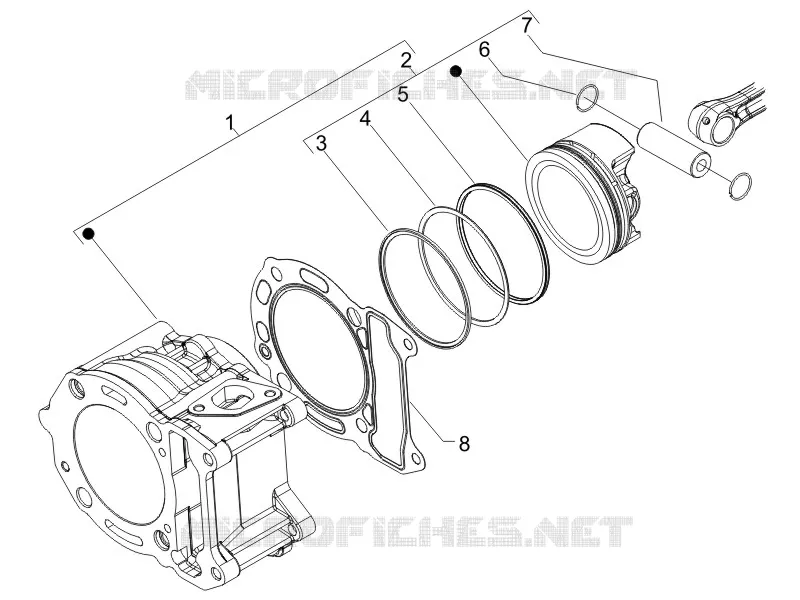

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
1
PISTON
828311
Not Available
1
Piston-wrist pin assy.
8284665002
Not Available
1
Piston-wrist pin assy.
828464
Not Available
1
Cylinder - piston - pin - parts- rings assembly
840566
Not Available
1
Piston-wrist pin assy.
828463
Not Available
2
Piston-wrist pin assy.
8284665002
Not Available
2
Piston-wrist pin assy.
8284665004
Not Available
2
Piston-wrist pin assy.
8284665003
Not Available
2
Piston-wrist pin assy.
8284665001
Not Available
3
Compression ring d.57x1
485779
$23,03 Unit Price incl. VAT
4
Oil scraper ring d.57x2,5
485914
$21,88 Unit Price incl. VAT
5
Oil scraper ring d.57x1
486362
$26,68 Unit Price incl. VAT
6
Snap ring
963486
$0,05 Unit Price incl. VAT
7
Piston pin
482335
$4,92 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
$4,04 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
