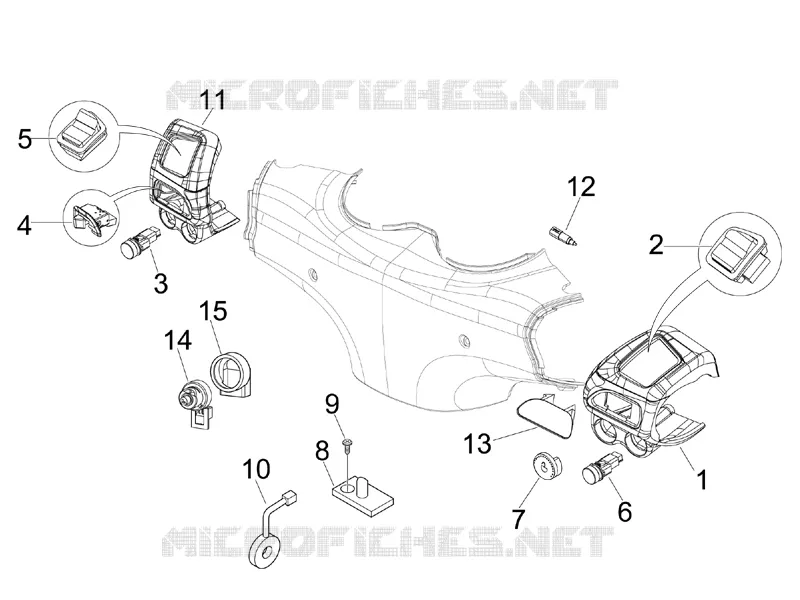

Selectors - Switches - Buttons
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Switches bracket
623450
$31,97 Unit Price incl. VAT
2
Engine stop-start device
582163
Not Available
3
Horn button
58058R
$7,08 Unit Price incl. VAT
4
Turn signal lamps switch
58056R
Not Available
5
Headlight selector
294341
Not Available
6
Start pushbutton
58057R
$7,08 Unit Price incl. VAT
7
Saddle opening button
582988
$6,35 Unit Price incl. VAT
8
Button
583752
Not Available
9
Self-tap screw 3,5x13
018536
$0,08 Unit Price incl. VAT
10
Button for side stand
639542
$41,85 Unit Price incl. VAT
11
Switches bracket
623451
$31,97 Unit Price incl. VAT
12
stop Button
583575
$3,26 Unit Price incl. VAT
13
Light switch seat cover
584426
Not Available
14
Key switch
582951
Not Available
15
Commutator cap
582041
$3,11 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
