Main cable harness for Beverly RST 4T 4V ie E3 from 2011

Main cable harness

1

Frame harness

641715

Not Available

1

Frame harness

680007

Not Available

2

Relay bracket

CM022804

$5,38 Unit Price incl. VAT

3

Screw w/ flange M6x16

B016777

$0,16 Unit Price incl. VAT

4

Mini fuse 5A

CM080904

$1,09 Unit Price incl. VAT

4

Mini fuse 10A

CM080906

$1,09 Unit Price incl. VAT

4

Mini fuse 30A

CM080910

$0,77 Unit Price incl. VAT

4

Mini fuse 15A

CM080907

$1,09 Unit Price incl. VAT

5

Plug connect diagnos ECU

582928

$1,01 Unit Price incl. VAT

6

Ground cable

584843

$9,18 Unit Price incl. VAT

7

Tri/lobed hexagonal self-tapping screw

641204

$0,34 Unit Price incl. VAT

8

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

9

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

10

Ambient temperature sensor

581142

Not Available

11

LV socket 12V

294770

$17,07 Unit Price incl. VAT

12

Hose clamp 2,7x132

640879

$0,92 Unit Price incl. VAT

13

Non return spring L=12

CM006905

$1,35 Unit Price incl. VAT

14

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

15

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

16

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

17

Elastic spring

231590

$0,25 Unit Price incl. VAT

18

Lock-strap

641605

$3,65 Unit Price incl. VAT

19

Pipes/cables retainer spring L=16

CM006907

$1,51 Unit Price incl. VAT

20

Non return spring

CM006902

$0,92 Unit Price incl. VAT

21

Spring for connector

639560

$0,67 Unit Price incl. VAT

22

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

23

Lock-strap L=277

257134

$0,25 Unit Price incl. VAT

24

Pipes/cables retainer spring

CM006903

$1,43 Unit Price incl. VAT

25

Maintenance

584002

$1,77 Unit Price incl. VAT

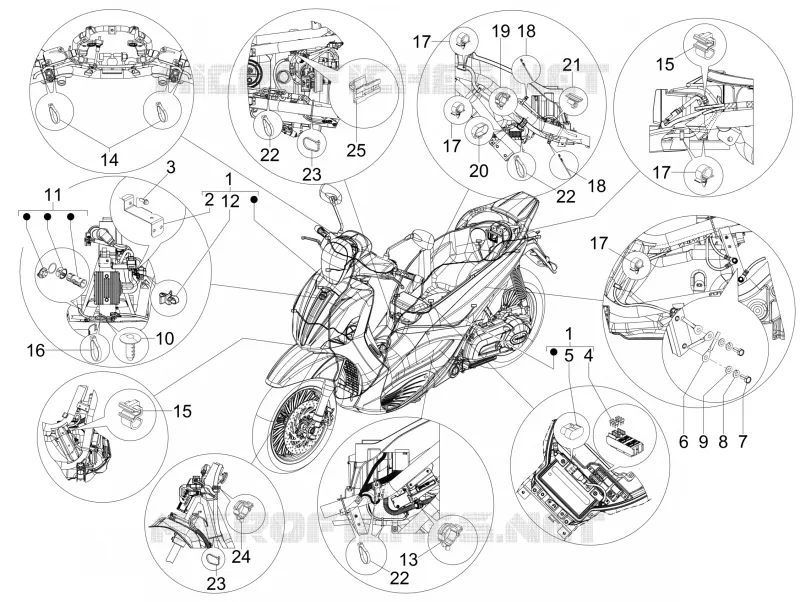

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
