1
Engine displacement
125
2
Model
BEVERLY
3
Year
2011
4
Trim
Beverly RST 4T 4V ie E3
5
Parts Catalog

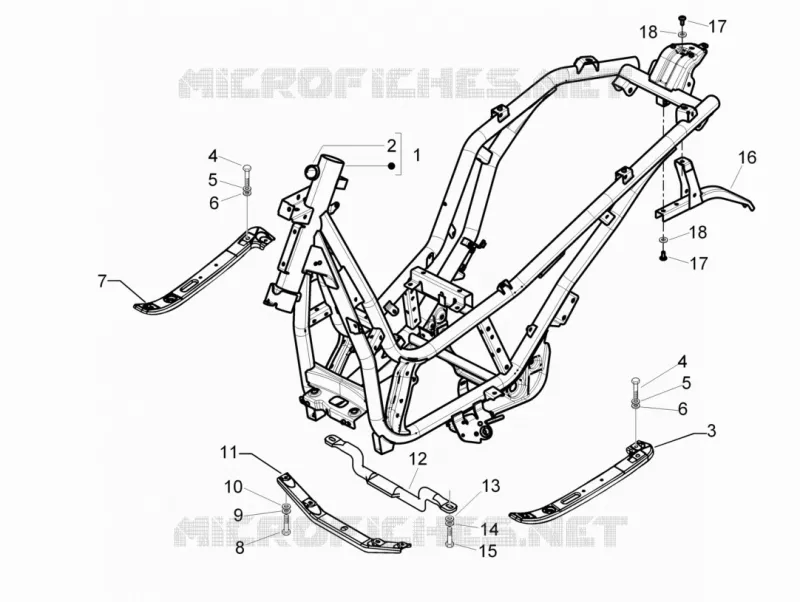

Frame/bodywork
6
Parts Diagram
Parts Catalog
Air filter
by
Helmet huosing - Undersaddle
Frame/bodywork
1
2
3
4
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
18
1
Frame with u.p.
6565295
Not Available
2
Lock support
575357
$24,90 Unit Price incl. VAT
3
Pin l.h.
6574955
Not Available
4
screw M6x16
031088
$0,17 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
7
Pin r.h.
6574965
$31,21 Unit Price incl. VAT
8
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
9
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
10
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
11
Crosspiece
657179
Not Available
12
Small carrier connector front pipe
6724355
$22,29 Unit Price incl. VAT
13
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
14
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
15
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
16
Rear frame
657193R5
$26,74 Unit Price incl. VAT
17
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
18
Washer
078307
$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
