Fuel tank for GILERA PIAGGIO VESPA Sprint 4T 3V ie from 2014

Fuel tank

1

Fuel tank

673632

$131,63 Unit Price incl. VAT

2

TAPPO COMPLETO

656022

$8,74 Unit Price incl. VAT

3

GUARNIZIONE TAPPO SERBATOIO

656021

$8,66 Unit Price incl. VAT

4

GUARNIZIONE SERBATOIO ESP.

620737

$4,82 Unit Price incl. VAT

5

GHIERA SERRAGGIO POMPA

576546

$4,71 Unit Price incl. VAT

6

GRUPPO POMPA CARB. COMPLETO

6405162

$155,20 Unit Price incl. VAT

7

Complete fuel pipe

1B000035

Not Available

8

INDICATORE LIVELLO CARBURANTE

680057

$41,80 Unit Price incl. VAT

9

GUARNIZIONE

676200

$13,47 Unit Price incl. VAT

10

DADO ESAG. AUTOFRENANTE

709116

$0,59 Unit Price incl. VAT

11

RONDELLA PIANA 14x6,4x1,5

006125

$0,16 Unit Price incl. VAT

12

Gasket

576542

Not Available

13

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

14

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

15

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

16

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

17

DISTANZIALE

1B000285

$0,50 Unit Price incl. VAT

18

TUBO SFIATO COMPLETO

1B000694

$76,39 Unit Price incl. VAT

19

TUBO SFIATO COMPLETO

1B000694

$76,39 Unit Price incl. VAT

20

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

21

FASCETTA STRINGITUBO

CM001914

$0,75 Unit Price incl. VAT

22

RONDELLA PIANA

097734

$0,75 Unit Price incl. VAT

23

VITE A TC - A M6x10 DIN 7985 -4.8

018509

$2,25 Unit Price incl. VAT

24

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

25

FASCETTA

573918

$1,09 Unit Price incl. VAT

26

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

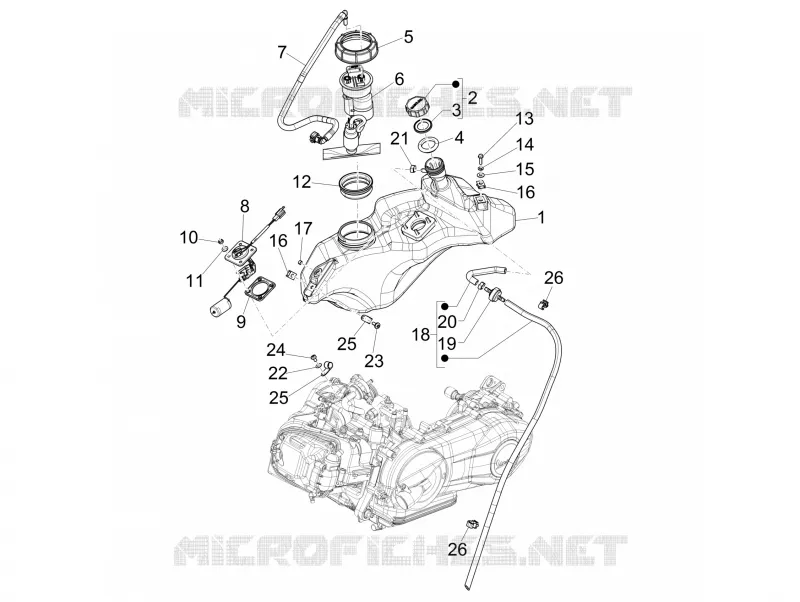

Find the detailed Fuel tank GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
