Crankcase cover - Crankcase cooling for GILERA PIAGGIO VESPA Sprint 4T 3V ie from 2014

Crankcase cover - Crankcase cooling

1

Transmission cover cpl.

1A0004575

Not Available

2

Pin 6,5x9,5x15

239388

Not Available

3

CUSCINETTO RAD. 15.35.

4789853

$6,05 Unit Price incl. VAT

4

ANELLO ELASTICO

006635

$0,25 Unit Price incl. VAT

5

GUARNIZIONE COPERCHIO RAFFRED.

1A000874

$4,82 Unit Price incl. VAT

6

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

7

FASCETTA

668643

$4,36 Unit Price incl. VAT

8

COPERCHIO RAFREDDAMENTO

1A001147

$12,45 Unit Price incl. VAT

9

TAMPONE DI RITEGNO

871458

$1,09 Unit Price incl. VAT

10

COPERCHIETTO COPERCHIO TRASMISSIONE

CM166001

$11,34 Unit Price incl. VAT

11

SOFFIETTO

1B001009

$14,30 Unit Price incl. VAT

12

VITE TBEI IMPRONTA TORX M5X14

B016455

$0,34 Unit Price incl. VAT

13

FASCETTA

709519

$5,38 Unit Price incl. VAT

14

FASCETTA

844964

$0,25 Unit Price incl. VAT

15

DISTAZIALE VENTOLA

B018051

$1,10 Unit Price incl. VAT

16

VITE AUTOFILETTANTE

B018060

$0,11 Unit Price incl. VAT

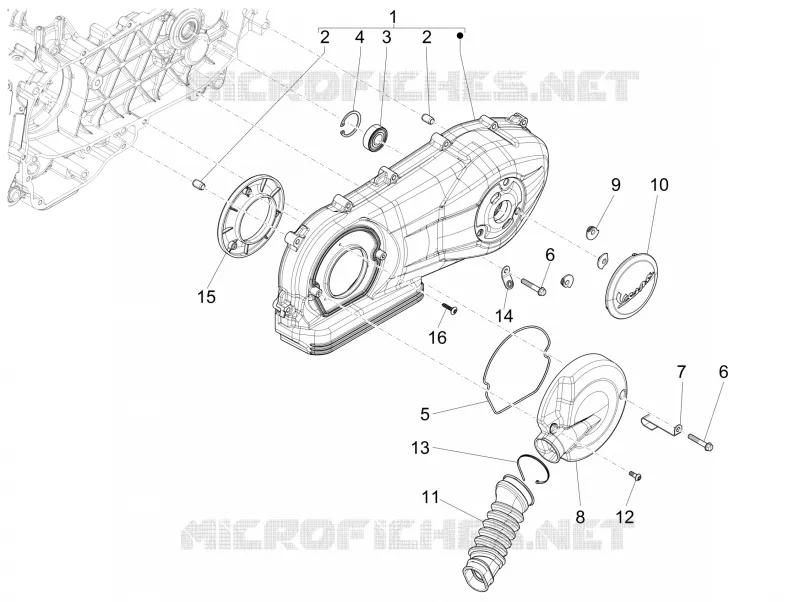

Find the detailed Crankcase cover - Crankcase cooling GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
