Swinging arm for GILERA PIAGGIO VESPA Sprint 4T 3V ie from 2014

Swinging arm

1

Complete swinging arm on frame side

1C000145R

$76,39 Unit Price incl. VAT

2

BUSSOLA

598917

$0,67 Unit Price incl. VAT

3

ASTUCCIO A RULLINI

600161

$6,98 Unit Price incl. VAT

4

BRACCIO OSCILL.L.MOTORE COMPL.

1C000503

$207,80 Unit Price incl. VAT

5

BUSSOLA

597317

$0,92 Unit Price incl. VAT

6

BOCCOLA A RULLINI C.TE

56127R

$5,55 Unit Price incl. VAT

7

DISTANZIALE PER BRACCIO OSCILLANTE

1C000439

$20,93 Unit Price incl. VAT

8

VITE TESTA ESAGONALE(M12x1,75)

597914

$14,12 Unit Price incl. VAT

9

ROSETTA PIANA

266845

$0,50 Unit Price incl. VAT

10

DISTANZIALE

1C000449

$4,36 Unit Price incl. VAT

11

DADO

271740

$0,67 Unit Price incl. VAT

12

DISTANZIALE PER BRACCIO OSCILLANTE

1C000440

$15,38 Unit Price incl. VAT

13

VITE

271807

$4,41 Unit Price incl. VAT

14

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

15

Complete silent block support bracket

1C000502

$61,33 Unit Price incl. VAT

16

Silent-block

668514

Not Available

17

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

18

COPERCHIO SILENTBLOCK

1C000421

$12,30 Unit Price incl. VAT

19

VITE TESTA ES. INTERAMENTE FILETTATO

1C000608

$3,65 Unit Price incl. VAT

20

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

21

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

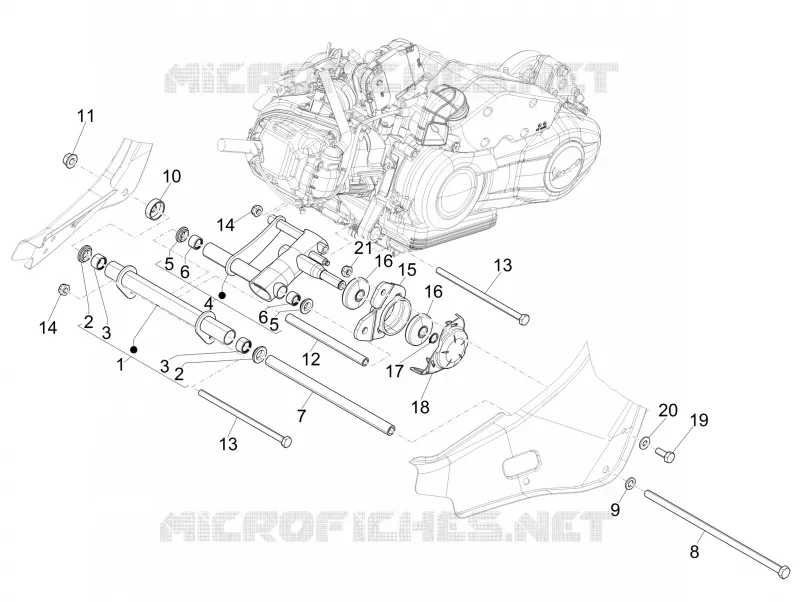

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
