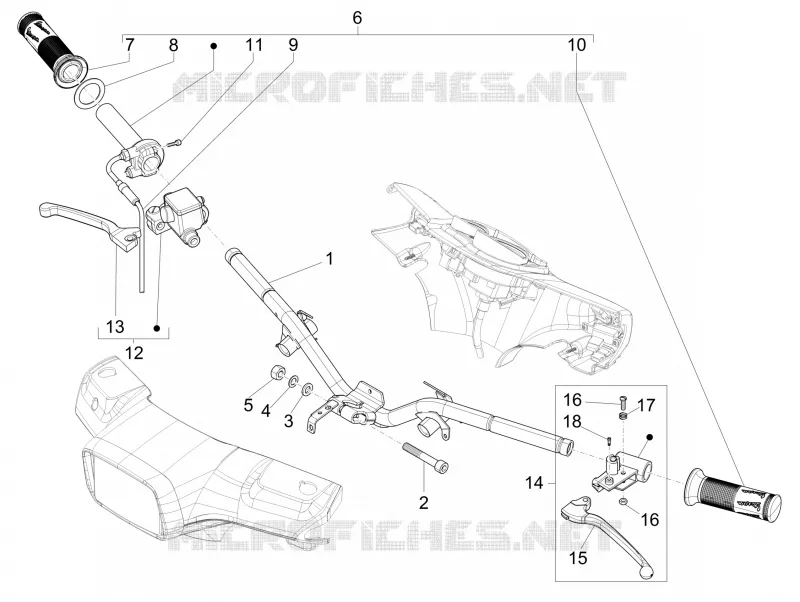

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
1
Handlebar
6542675
$136,80 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM060982
Not Available
6
Complete throttle control sleeve
CM060977
$87,75 Unit Price incl. VAT
7
RH hand grip
274491
$12,19 Unit Price incl. VAT
7
Grip, r.h.
CM083804
$18,36 Unit Price incl. VAT
8
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
9
Complete throttle control transmission
650477
$46,68 Unit Price incl. VAT
10
Grip, l.h.
274489
$13,41 Unit Price incl. VAT
10
Grip, l.h.
CM083803
$18,36 Unit Price incl. VAT
11
Screw with bushing
123394
$3,70 Unit Price incl. VAT
12
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
13
Brake lever
497042
$18,36 Unit Price incl. VAT
14
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
15
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
16
Screw with nut
265249
$3,70 Unit Price incl. VAT
17
Spring
267948
$4,89 Unit Price incl. VAT
18
Screw with bushing
123394
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
