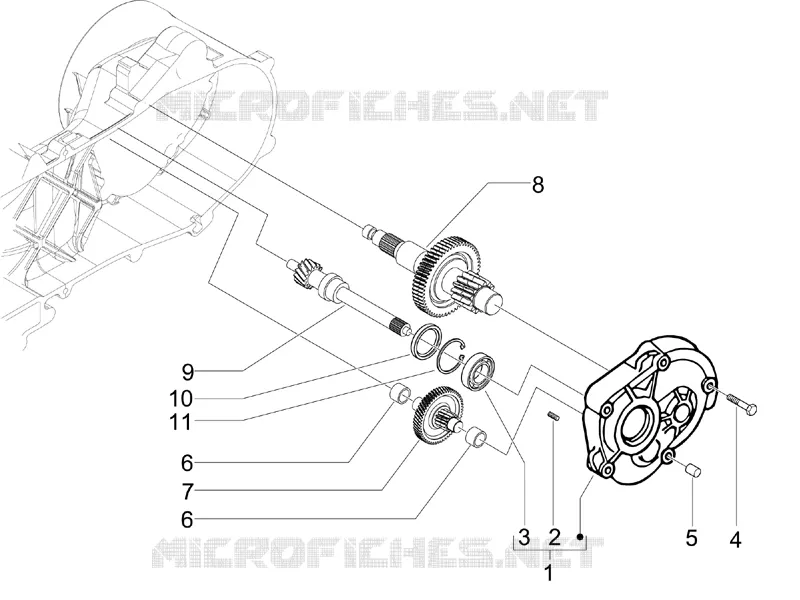

Reduction unit
1
2
3
4
5
6
6
7
8
9
10
11
1
Wheel hub cover with U.P.
4874805
$43,90 Unit Price incl. VAT
2
Pin 6,5x9,5x15
239388
Not Available
3
Bearing
435363
$6,44 Unit Price incl. VAT
4
Screw w/ flange M6x40
B016763
$3,65 Unit Price incl. VAT
5
Compensator ring
478197
$8,31 Unit Price incl. VAT
6
Shim washer
288639
$2,99 Unit Price incl. VAT
7
Countershaft with u.p.
8262165
$273,44 Unit Price incl. VAT
8
Rear wheel axle with U.P.
8252515
$337,37 Unit Price incl. VAT
9
Driven pulley shaft
4795935
Not Available
10
Gasket ring
480066
$5,99 Unit Price incl. VAT
11
Snap ring
480953
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
