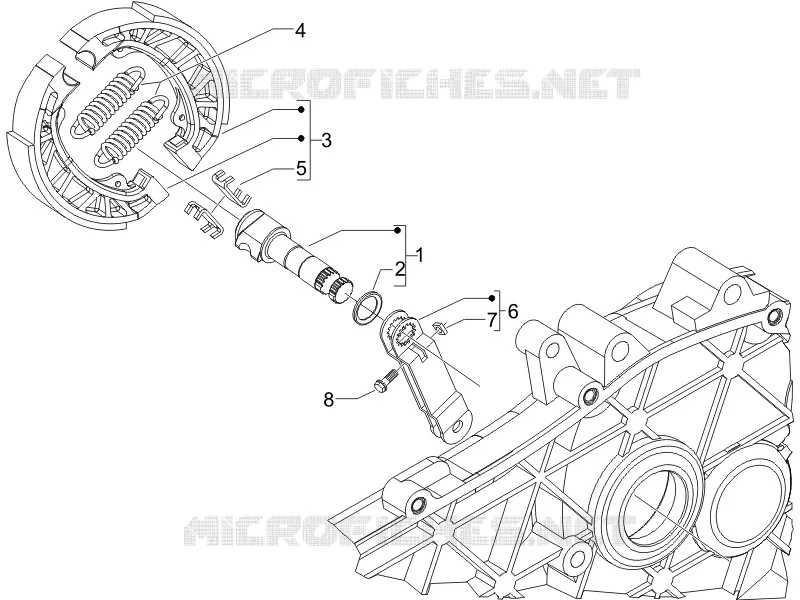

Rear brake - Brake jaw
1
1
2
2
3
4
5
6
7
8
1
Brake lever shaft
564136
Not Available
2
Gasket
564134
$0,15 Unit Price incl. VAT
3
Pair of brake shoes
82907R
$28,35 Unit Price incl. VAT
3
Pair of brake shoes
880769
Not Available
4
Brake shoes return spring
647384
$1,43 Unit Price incl. VAT
5
Plate
266724
$18,39 Unit Price incl. VAT
6
Rear brake control lever
564215
$7,89 Unit Price incl. VAT
7
Square nut
828862
$2,99 Unit Price incl. VAT
8
screw M6x35
414838
$0,67 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
