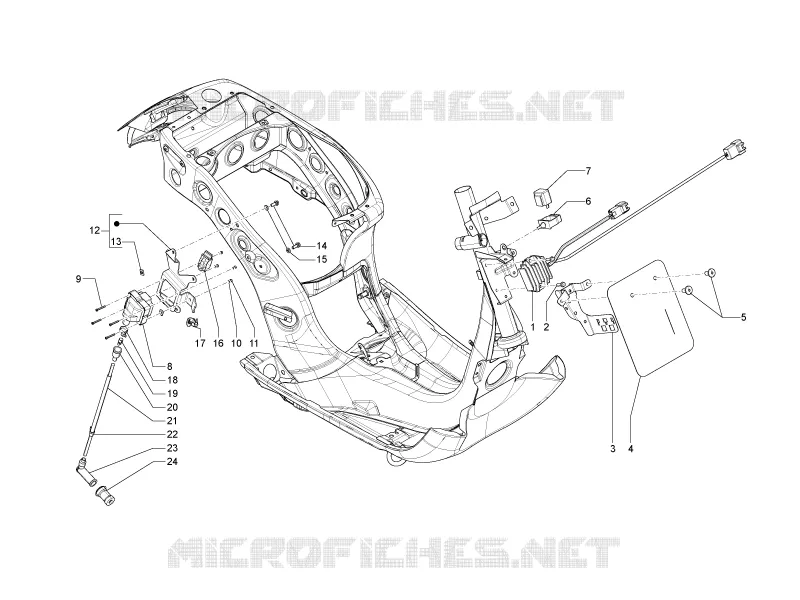

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Voltage regulator
58204R
$143,10 Unit Price incl. VAT
2
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
3
Connector bracket
641845
$15,22 Unit Price incl. VAT
4
Relays protection plate
642234
$18,44 Unit Price incl. VAT
5
Clip
D9004468231
$4,62 Unit Price incl. VAT
6
Flexible support
291017
$4,88 Unit Price incl. VAT
7
Turn indicator control
640289
Not Available
8
HT coil
58120R
$65,76 Unit Price incl. VAT
9
screw M3x20
583236
$3,70 Unit Price incl. VAT
10
Washer 3.2x5.7x0.9
012554
$1,56 Unit Price incl. VAT
11
Nut M 3
020003
$2,27 Unit Price incl. VAT
12
H.v. coil bracket
641573
$15,22 Unit Price incl. VAT
13
Nut
D9004174001
$4,62 Unit Price incl. VAT
14
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
15
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
16
Non return spring L=33
CM006906
$1,26 Unit Price incl. VAT
17
Spring
CM013201
$0,40 Unit Price incl. VAT
18
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
19
End cap
015014
$4,82 Unit Price incl. VAT
20
Insulating cap
071671
$1,29 Unit Price incl. VAT
21
H.V. cable
080341
$5,89 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Screened cap
969348
$8,17 Unit Price incl. VAT
24
Protection collar
436919
$1,45 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
