by

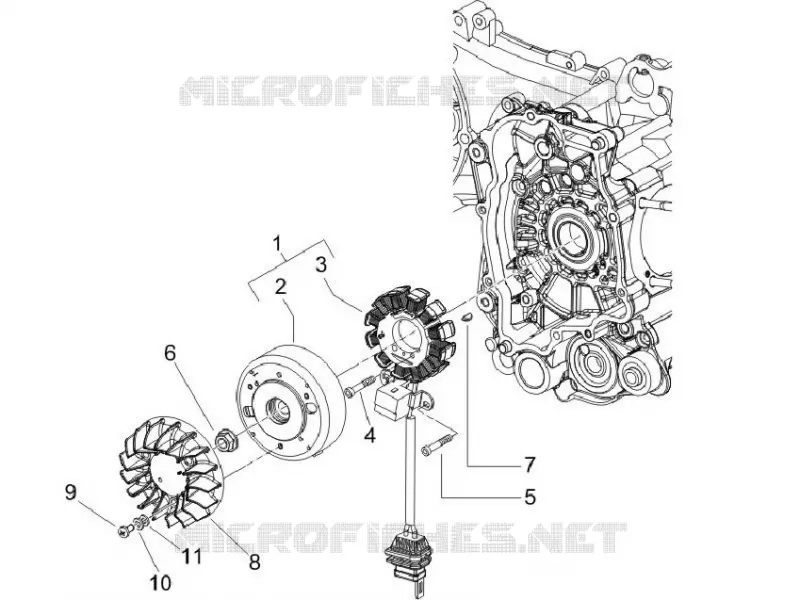

Flywheel magneto
1
2
3
4
5
6
7
8
9
10
11
1
Complete magneto flywheel
58059R
$113,40 Unit Price incl. VAT
2
(Mitsuba) complete rotor
486140
Not Available
2
Complete rotor (Kokusan)
584695
$17,91 Unit Price incl. VAT
3
Complete stator (Kokusan)
584690
$39,60 Unit Price incl. VAT
3
Stator
638593
Not Available
4
Screw M5x22
828662
$0,25 Unit Price incl. VAT
5
Screw M5x10
018575
$2,95 Unit Price incl. VAT
6
Flanged nut M12
436783
Not Available
7
Transmission key
000267
$1,19 Unit Price incl. VAT
8
Fan
825430
$5,64 Unit Price incl. VAT
9
Hex socket screw M5x20
845753
Not Available
9
screw M5x16
259151
$4,38 Unit Price incl. VAT
10
Flat washer 5,3x14x1
060201
Not Available
10
Flat washer Ø5,3xØ14x1
097733
$3,65 Unit Price incl. VAT
11
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
11
Washer Ø5xØ12x1.1
828583
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
