Parts Catalog

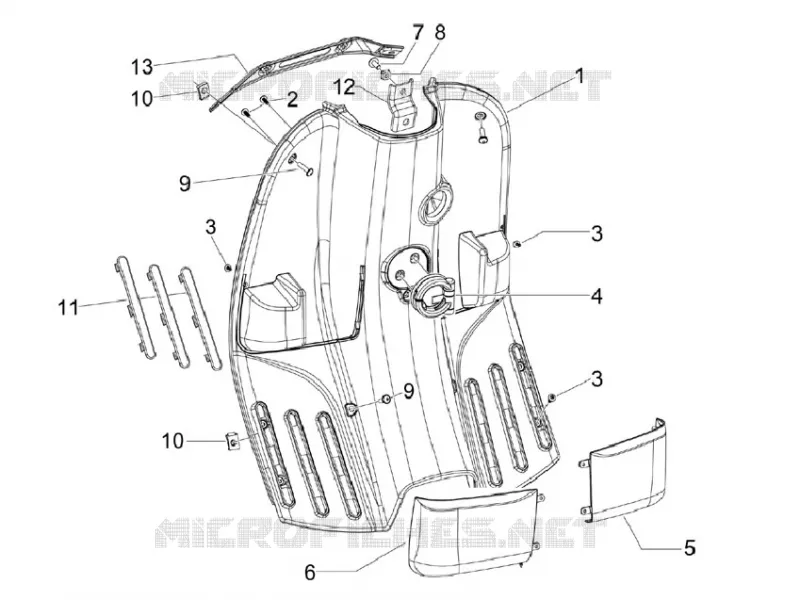

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Locks
by
Plates - Emblems
Front glove-box - Knee-guard panel
1
2
3
3
3
4
5
6
7
8
9
9
10
10
11
12
13
1
Painted leg shield back plate
65711800R7
Not Available
1
Painted leg shield back plate
65711800BR
$503,36 Unit Price incl. VAT
1
Counter shield
657118
$297,56 Unit Price incl. VAT
1
Painted leg shield back plate
65711820AI
Not Available
1
Painted leg shield back plate
65711800ND
Not Available
2
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
3
Self tapping screw
297498
$0,08 Unit Price incl. VAT
4
Bag holder hook
575819
$12,88 Unit Price incl. VAT
5
Right glovebox
65429500AI
$51,49 Unit Price incl. VAT
5
Right glovebox
65429500ND
Not Available
5
Right glovebox
65429520AI
Not Available
5
Right glovebox
65429500BR
$51,49 Unit Price incl. VAT
5
Right glovebox
654295
$41,80 Unit Price incl. VAT
5
Right glovebox
65429500R7
$51,49 Unit Price incl. VAT
6
Left glovebox
65429400R7
$51,49 Unit Price incl. VAT
6
Left glovebox
65429420AI
Not Available
6
Left glovebox
654294
$41,80 Unit Price incl. VAT
6
Left glovebox
65429400BR
Not Available
6
Left glovebox
65429400ND
Not Available
6
Left glovebox
65429400AI
$51,49 Unit Price incl. VAT
7
Self-tap screw
576189
$0,05 Unit Price incl. VAT
7
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
8
Spring plate
CM017409
$0,08 Unit Price incl. VAT
9
Screw w/ flange
AP8152338
$3,65 Unit Price incl. VAT
10
Spring plate M5
248419
$0,67 Unit Price incl. VAT
11
Packing
657130
Not Available
12
Leg shield back plate fixing central bracket
654292
$5,38 Unit Price incl. VAT
13
Upper fixing bracket of the leg shield back plate with U.P.
654290
$8,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
