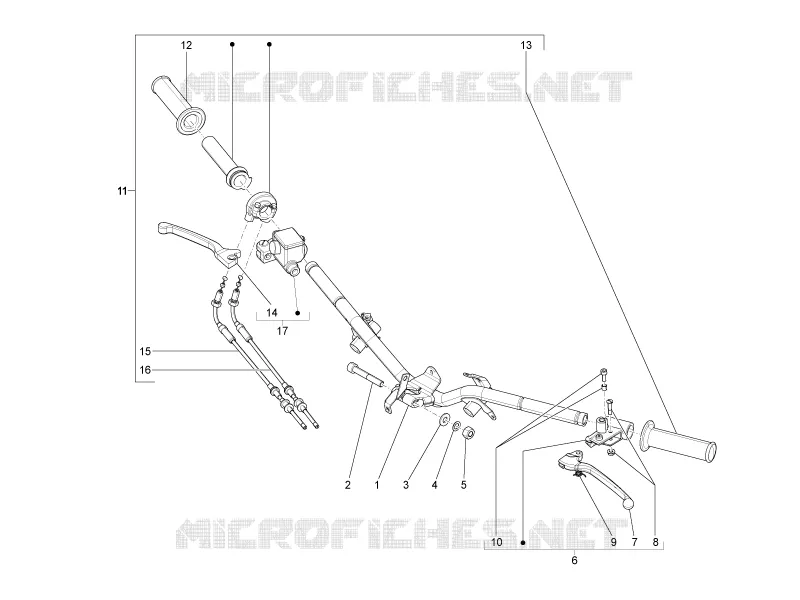

Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Handlebar
6542675
$136,80 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Left hand grip with rear brake lever
CM063804
$51,30 Unit Price incl. VAT
7
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
8
Screw with nut
265249
$3,70 Unit Price incl. VAT
9
Spring
267948
$4,89 Unit Price incl. VAT
10
Screw with bushing
123394
$3,70 Unit Price incl. VAT
11
Throttle control sleeve assembly
CM079727
$151,20 Unit Price incl. VAT
12
Grip, r.h.
CM083804
$18,36 Unit Price incl. VAT
13
Grip, l.h.
CM083803
$18,36 Unit Price incl. VAT
14
Brake lever
646833
Not Available
15
Throttle opening transmission
651171
$36,45 Unit Price incl. VAT
16
Throttle closing transmission
651172
$37,80 Unit Price incl. VAT
17
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
