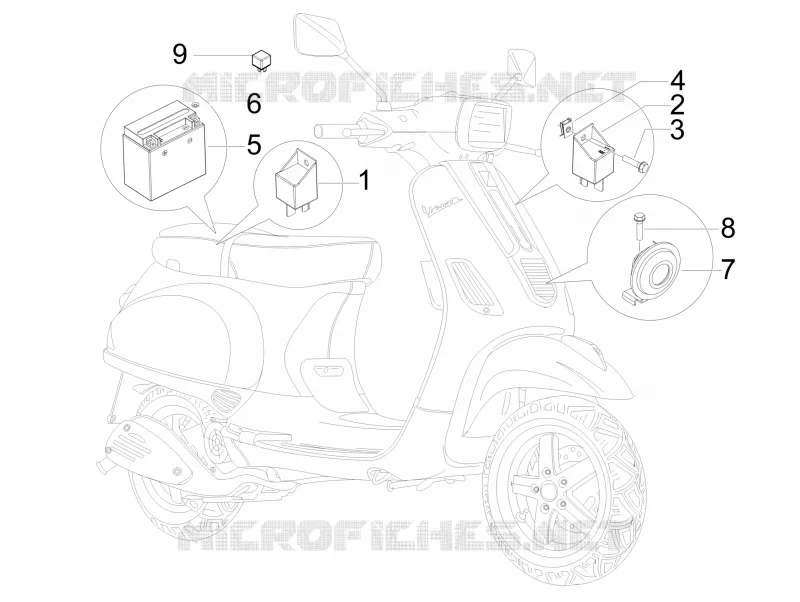

Remote control switches - Battery - Horn
1
2
3
4
5
6
7
8
9
1
Rem. control switch 12V-80A
584521
Not Available
1
Lambda probe connector support
847974
$4,98 Unit Price incl. VAT
1
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
2
Rem. control switch 12V-30A
58099R
$36,86 Unit Price incl. VAT
3
Self-tap screw
576189
$0,05 Unit Price incl. VAT
4
Spring plate
CM017409
$0,08 Unit Price incl. VAT
5
Battery (Yuasa) 12V-10Ah
583158
$278,17 Unit Price incl. VAT
6
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
7
Horn
1D000636
$35,10 Unit Price incl. VAT
8
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
9
Turn indicator control
638755
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
