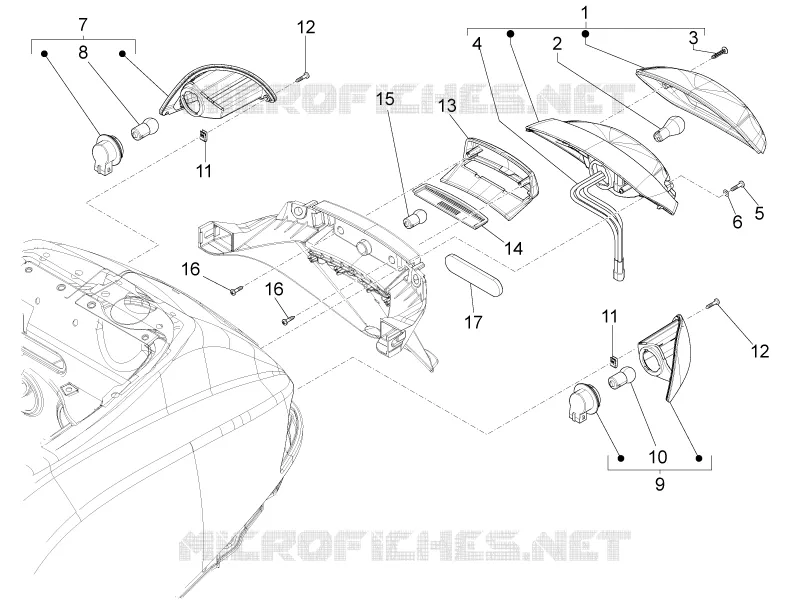

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
16
17
1
Rear light assembly
640720
Not Available
2
Lamp 12V-21/5W
129953
$7,81 Unit Price incl. VAT
3
Special cap screw
640813
$3,65 Unit Price incl. VAT
4
Cable harness
639153
$15,37 Unit Price incl. VAT
5
Screw M4x12
015996
$0,08 Unit Price incl. VAT
6
Washer
013769
$2,95 Unit Price incl. VAT
7
Right rear turn indicator
58177R
Not Available
8
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
9
Left rear turn indicator
58176R
Not Available
10
Lamp 12V-10W
584332
$11,15 Unit Price incl. VAT
11
Spring plate
CM017405
$3,65 Unit Price incl. VAT
12
Screw d3,5x13
008372
$2,95 Unit Price incl. VAT
13
License plate light cover
65426200R7
Not Available
13
License plate light cover
65426220L3
Not Available
13
License plate light cover
65426200AU
Not Available
13
License plate light cover
65426220AT
Not Available
13
License plate light cover
654262
$15,37 Unit Price incl. VAT
13
License plate light cover
65426200BR
$55,33 Unit Price incl. VAT
14
License plate light glass
639335
$4,82 Unit Price incl. VAT
15
Lamp 12V-5W
292022
Not Available
16
Screw d3,5x13
008372
$2,95 Unit Price incl. VAT
17
Rear retroreflector
582058
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
