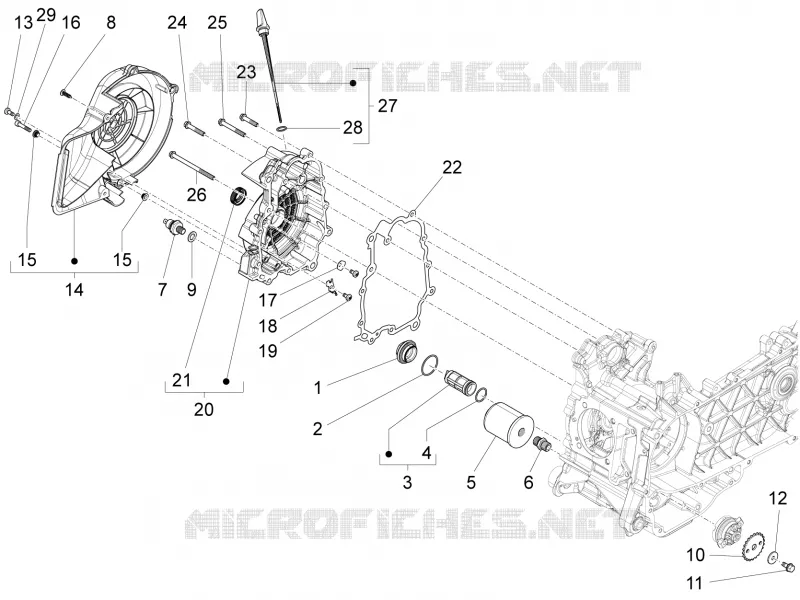

Flywheel magneto cover - Oil filter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Oil filter plug
B015456
$14,30 Unit Price incl. VAT
2
O-ring 31,47x1,78
B015989
Not Available
3
Intake oil filter
B015454
$2,52 Unit Price incl. VAT
4
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
5
Oil filter
82635R
$12,36 Unit Price incl. VAT
6
Special screw
B015455
$3,87 Unit Price incl. VAT
7
Oil pressure sensor
641541
Not Available
8
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
9
Washer 10,5x17x1,5
B015988
$3,65 Unit Price incl. VAT
10
Oil pump gear
287913
$6,47 Unit Price incl. VAT
11
Screw w/ flange M6x14
1A000323
Not Available
12
Belleville spring
B015991
$0,34 Unit Price incl. VAT
13
Metric screw M5x20
1A000320
Not Available
14
Complete flywheel side duct
1A001451
Not Available
15
Bushing
B015908
$1,18 Unit Price incl. VAT
16
Hex socket screw M5x25
486972
$0,09 Unit Price incl. VAT
17
Housing sheet
B018105
$1,77 Unit Price incl. VAT
18
Housing sheet
B018106
$1,35 Unit Price incl. VAT
19
Metric screw M5x20
1A000320
Not Available
20
Complete flywheel cover
8798545
$158,88 Unit Price incl. VAT
21
Gasket ring 14x28x7
B015692
$5,20 Unit Price incl. VAT
22
Flywheel housing cover gasket
877671
$4,12 Unit Price incl. VAT
23
Screw w/ flange M6x30
B015964
Not Available
24
Hex screw M6x35
B015965
Not Available
25
Screw w/ flange M6x50
B015966
Not Available
26
Screw w/ flange M6x90
1A000318
Not Available
27
Oil dipstick
B017891
$5,38 Unit Price incl. VAT
28
O-ring
479986
Not Available
29
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
