1
Engine displacement
125
2
Model
S
3
Year
2014
4
Trim
S 4T 3V E3 ie
5
Parts Catalog

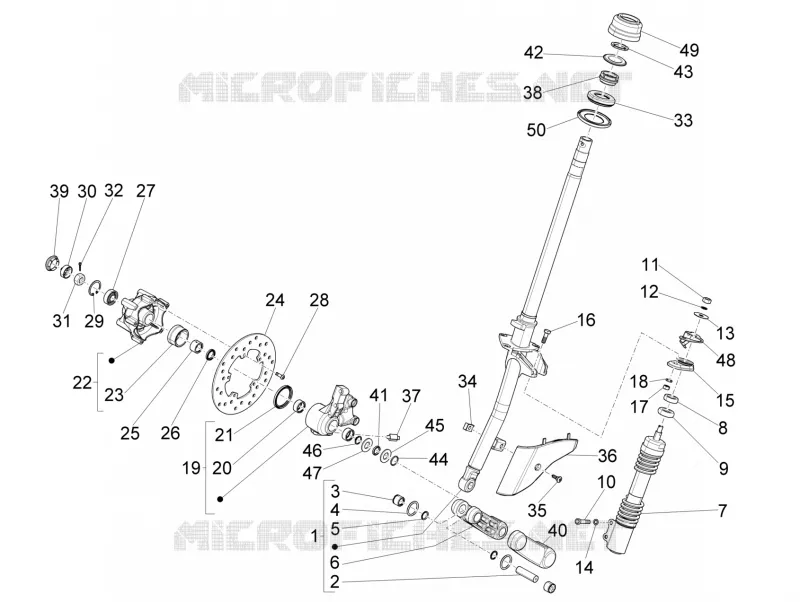

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Crankcase cover - Crankcase cooling
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
1
Steering tube complete with arm
6501315
$304,62 Unit Price incl. VAT
2
Piston pin
177451
$3,03 Unit Price incl. VAT
3
Roller cage
198513
$5,97 Unit Price incl. VAT
4
Gasket
006731
$0,34 Unit Price incl. VAT
5
Gasket ring
119219
$0,67 Unit Price incl. VAT
6
Suspension arm with I.P.
6514825
$95,15 Unit Price incl. VAT
7
Front shock absorber
665766
$67,39 Unit Price incl. VAT
8
Pad
174085
$1,18 Unit Price incl. VAT
9
Pad
174874
$2,36 Unit Price incl. VAT
10
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
11
Nut
021210
$0,16 Unit Price incl. VAT
12
Washer
174088
$0,84 Unit Price incl. VAT
13
Washer
012535
$0,08 Unit Price incl. VAT
14
Spring washer
709047
$0,08 Unit Price incl. VAT
15
Shock absorber connection bracket
601556
$7,73 Unit Price incl. VAT
16
screw
031120
$0,42 Unit Price incl. VAT
17
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
18
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
19
Not available
5602865
$166,91 Unit Price incl. VAT
20
Drawn cap
177436
$9,18 Unit Price incl. VAT
21
Ring
177494
$1,85 Unit Price incl. VAT
22
Front wheel hub
560284
Not Available
23
Ring gear counts Km socket
267818
$33,03 Unit Price incl. VAT
24
Brake disc
56395R
$21,87 Unit Price incl. VAT
25
Roller cage
177442
$4,04 Unit Price incl. VAT
26
Gasket ring
177443
$1,77 Unit Price incl. VAT
27
Bearing
177610
$8,41 Unit Price incl. VAT
28
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
28
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
29
Snap ring
006635
$0,25 Unit Price incl. VAT
30
Cap
177609
$2,19 Unit Price incl. VAT
31
Nut
021114
$0,51 Unit Price incl. VAT
32
Split pin
012789
$0,16 Unit Price incl. VAT
33
Lower steering bearing
650075
Not Available
34
Spring plate M6
254485
$0,34 Unit Price incl. VAT
35
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
36
Suspension cover
654268
$6,30 Unit Price incl. VAT
37
Pinion
267819
$7,69 Unit Price incl. VAT
38
Upper thrust ring
65069345
$19,08 Unit Price incl. VAT
39
Axle plug
665657
$5,38 Unit Price incl. VAT
40
Front suspension arm cover
561433
Not Available
41
Ring
177521
$0,66 Unit Price incl. VAT
42
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
43
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
44
O-ring
177408
$0,08 Unit Price incl. VAT
45
Washer
177445
$0,34 Unit Price incl. VAT
46
Circlip
006422
$0,16 Unit Price incl. VAT
47
Washer
177414
$0,75 Unit Price incl. VAT
48
Brake pipe support bracket
665701
$5,38 Unit Price incl. VAT
49
Bearing protection hood
665735
Not Available
50
Guard washer
1C001628
$5,20 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
